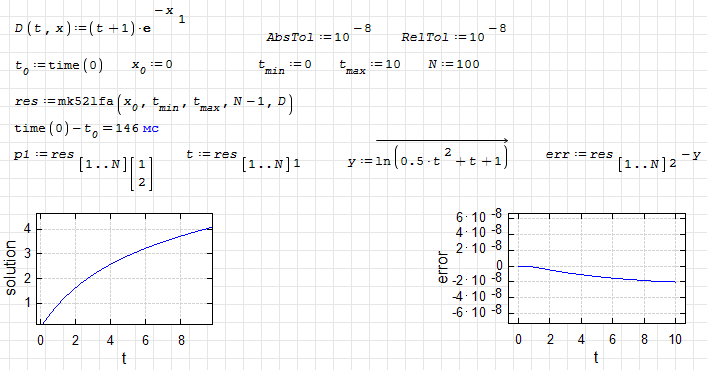

Updated. Now you can also use simple form for D() function definition.

Russia ☭ forever, Viacheslav N. Mezentsev

4 users liked this post

sergio 2018/12/6 06:45:00, frapuano 2018/12/6 06:58:00, Radovan Omorjan 2018/12/6 09:33:00, Alvaro 2018/12/6 10:09:00

#82 Posted: 2018/12/6 06:01:27

Вячеслав Мезенцев

1,532 likes in 1,838 posts.

Group: Moderator

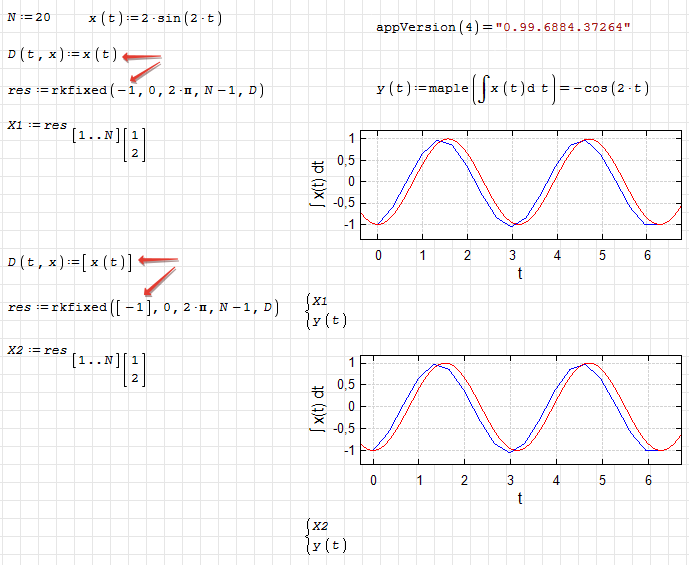

But x in D(t,x) is vector.

Russia ☭ forever, Viacheslav N. Mezentsev

#83 Posted: 2018/12/24 05:33:39

Вячеслав Мезенцев

1,532 likes in 1,838 posts.

Group: Moderator

Updated.

Now x in simple D(t,x) definition must be a scalar.

iode.examples.sm (204.21 KiB) downloaded 1454 time(s).
iode.kinetic1.sm (7.75 KiB) downloaded 1334 time(s).
iode.kinetic2.sm (14.4 KiB) downloaded 1257 time(s).
iode.kinetic3.sm (14.08 KiB) downloaded 6198 time(s).
iode.integrate.sm (10.57 KiB) downloaded 6193 time(s).
iode.test1.sm (22.49 KiB) downloaded 1285 time(s).
iode.test2.sm (22.5 KiB) downloaded 1373 time(s).
iode.Amplitude detector.sm (20.18 KiB) downloaded 1333 time(s).

iode.examples.pdf (416.34 KiB) downloaded 725 time(s).
iode.kinetic1.pdf (74.06 KiB) downloaded 604 time(s).
iode.kinetic2.pdf (90.4 KiB) downloaded 606 time(s).
iode.kinetic3.pdf (88.45 KiB) downloaded 569 time(s).
iode.integrate.pdf (88.91 KiB) downloaded 721 time(s).
iode.test1.pdf (116.24 KiB) downloaded 598 time(s).
iode.test2.pdf (121.64 KiB) downloaded 600 time(s).
iode.Amplitude detector.pdf (147.71 KiB) downloaded 616 time(s).

Russia ☭ forever, Viacheslav N. Mezentsev

4 users liked this post

sergio 2018/12/24 06:25:00, NDTM Amarasekera 2018/12/24 09:43:00, frapuano 2018/12/24 14:23:00, Radovan Omorjan 2018/12/24 14:51:00

#84 Posted: 2019/1/16 06:05:17

Вячеслав Мезенцев

1,532 likes in 1,838 posts.

Group: Moderator

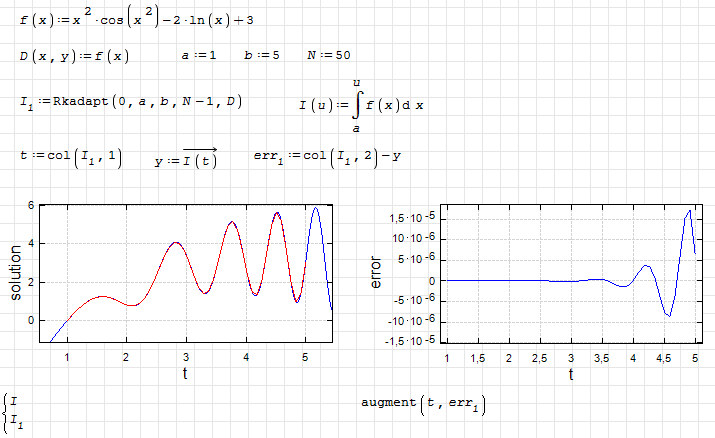

Updated. Rkadapt() fixed.

Russia ☭ forever, Viacheslav N. Mezentsev

3 users liked this post

sergio 2019/1/16 06:31:00, NDTM Amarasekera 2019/1/16 07:32:00, frapuano 2019/1/16 06:25:00

#85 Posted: 2019/1/31 17:43:52

Вячеслав Мезенцев

1,532 likes in 1,838 posts.

Group: Moderator

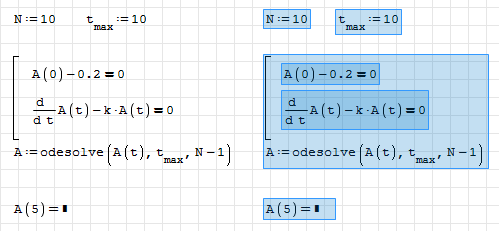

Updated ( >= SMath Studio 0.99.6970).

Changes:

- divided into two plugins (the second one is Intel ODE Solver Library);
- version changed (0.2.x.x);
- refactored.

Russia ☭ forever, Viacheslav N. Mezentsev

#86 Posted: 2019/2/11 09:36:21

Вячеслав Мезенцев

1,532 likes in 1,838 posts.

Group: Moderator

Some news.

It's hard but I want to realize a general solution for some types of tasks. Specially for this I need more powerful symbolic engine inside SMath. Therefore I made symcs project. I hope that we can use this solution in other similar cases.

That's why I split the plugin.

Russia ☭ forever, Viacheslav N. Mezentsev

2 users liked this post

frapuano 2019/2/11 13:49:00, Radovan Omorjan 2019/2/11 10:58:00

#87 Posted: 2019/2/11 11:01:58

Radovan Omorjan

325 likes and 1 dislikes in 2,052 posts.

Group: Moderator

I think that most of the Mathcad users know what you intend to do and I really appreciate that

Regards,
Radovan

When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"

#88 Posted: 2019/2/11 15:52:40

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote
I think that most of the Mathcad users know what you intend to do and I really appreciate that

Viacheslav is an ancient Mathsoft visitor.
I still have a document from Him ... 2D Implicit plot.
Is possible to code 1/1 Mathcad Given/ODEsolve ?

#89 Posted: 2019/2/11 16:35:16

Вячеслав Мезенцев

1,532 likes in 1,838 posts.

Group: Moderator

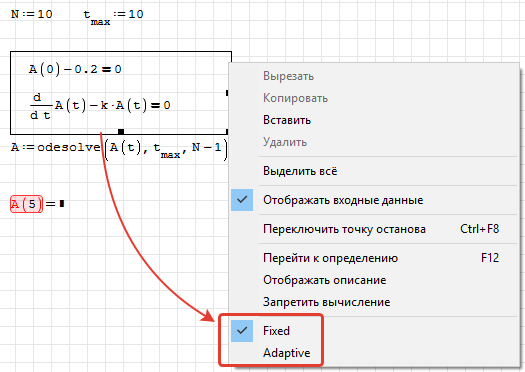

No, Jean, 1/1 - not possible. Now they have two different realisations: MC11-MC15 and Prime. But I can do something similar. Plugin can implicity collect information about available ode solvers and you can choose them in the context menu.

Russia ☭ forever, Viacheslav N. Mezentsev

1 users liked this post

frapuano 2019/2/12 06:00:00

#90 Posted: 2019/2/11 16:52:19

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote
No, Jean, 1/1 - not possible. Now they have two different realisations: MC11-MC15 and Prime. But I can do something similar. Plugin can implicity collect information about available ode solvers and you can choose them in the context menu.

I can see you "busy" ! Gorgeous context menu.
What is that Smath Community doing: Building Cathedrals/Pyramids ?
You mean: Mathcad Prime "cluster fuck" in US appreciation from Collab.

#91 Posted: 2021/7/11 00:23:42

Alvaro

1,078 likes in 1,749 posts.

Group: User

Wrote
Some news.

It's hard but I want to realize a general solution for some types of tasks. Specially for this I need more powerful symbolic engine inside SMath. Therefore I made symcs project. I hope that we can use this solution in other similar cases.

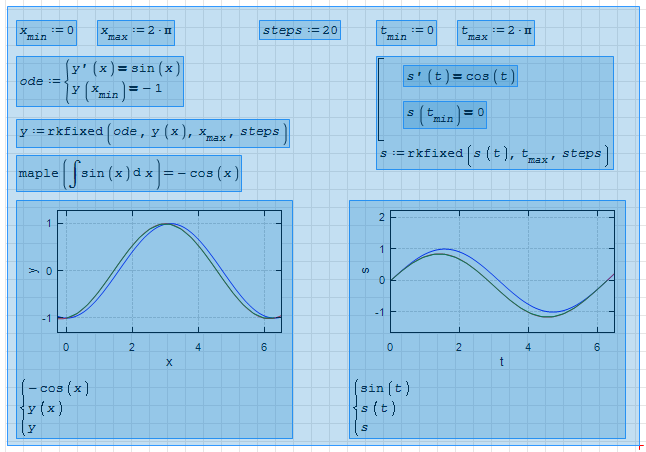

Hi uni. It is possible to enable a clone of that component for return only the expressions inside? For example, the set of the equations

Also, it is possible too to add the option for mark with a round box the area?

Best regards.
Alvaro.

#92 Posted: 2021/7/11 01:20:49

Вячеслав Мезенцев

1,532 likes in 1,838 posts.

Group: Moderator

Yes, it is possible.

Russia ☭ forever, Viacheslav N. Mezentsev

1 users liked this post

Alvaro 2021/7/11 02:41:00

#93 Posted: 2021/11/26 00:11:56

Вячеслав Мезенцев

1,532 likes in 1,838 posts.

Group: Moderator

Coming soon, but for now as an experiment.

Russia ☭ forever, Viacheslav N. Mezentsev

2 users liked this post

Davide Carpi 2021/11/29 06:40:00, Alvaro 2021/11/26 04:23:00

#94 Posted: 2021/11/28 15:47:31

Вячеслав Мезенцев

1,532 likes in 1,838 posts.

Group: Moderator

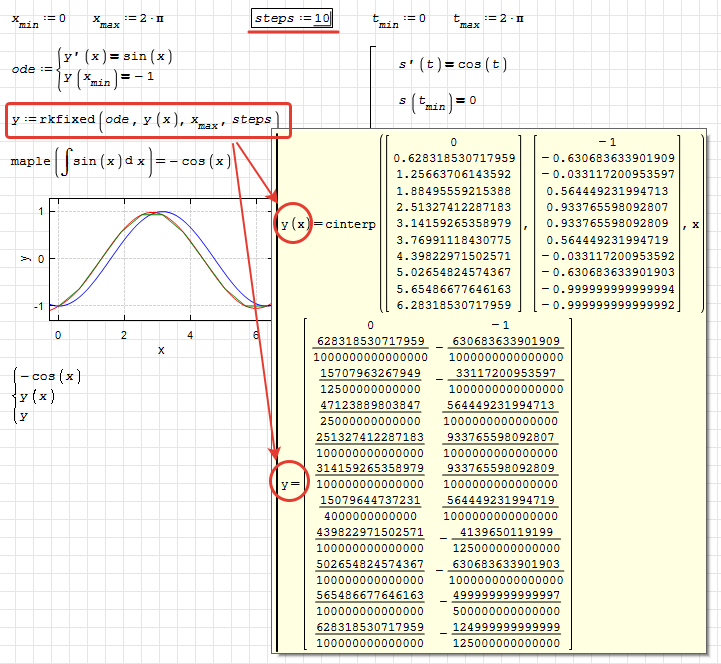

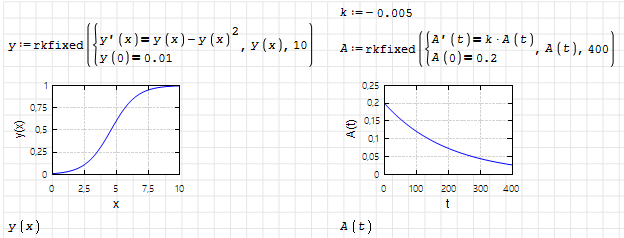

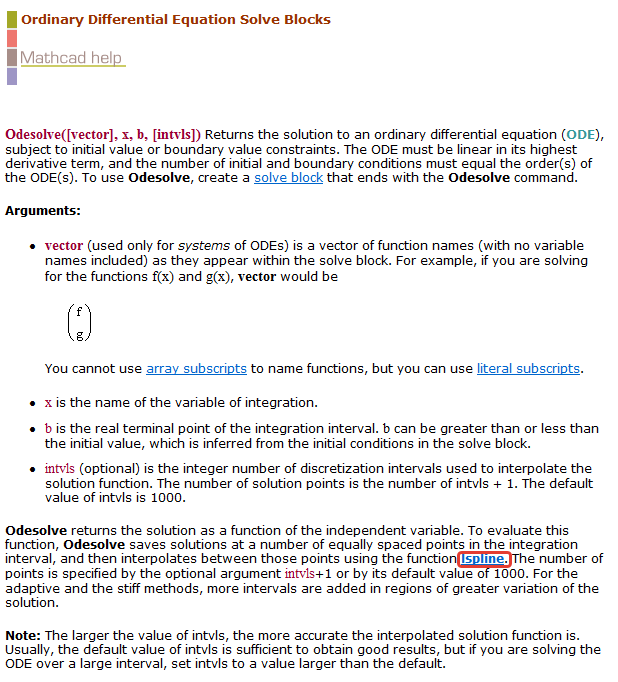

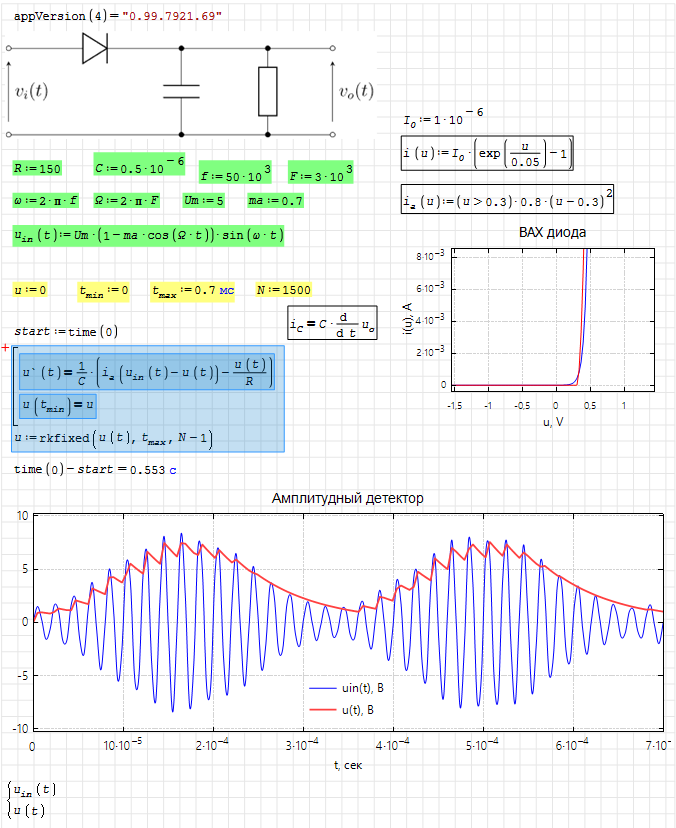

I have verified that linear interpolation is used, which is described in the manual.

I changed the interpolation method to linear and also changed the notation of the derivative by analogy ( "`" ).

Russia ☭ forever, Viacheslav N. Mezentsev

1 users liked this post

Davide Carpi 2021/11/29 06:40:00

#95 Posted: 2021/11/28 16:42:18

Вячеслав Мезенцев

1,532 likes in 1,838 posts.

Group: Moderator

Prime symbol looks much better (′). I think it's better to use it.

Russia ☭ forever, Viacheslav N. Mezentsev

#96 Posted: 2021/11/28 18:49:59

Вячеслав Мезенцев

1,532 likes in 1,838 posts.

Group: Moderator

I was wrong. Linear interpolation and linear spline interpolation are different things. I will try to find the formulas that are used in these functions.

Russia ☭ forever, Viacheslav N. Mezentsev

#97 Posted: 2021/11/29 02:43:07

Вячеслав Мезенцев

1,532 likes in 1,838 posts.

Group: Moderator

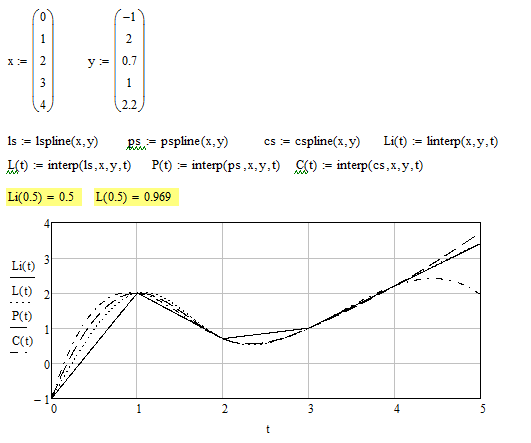

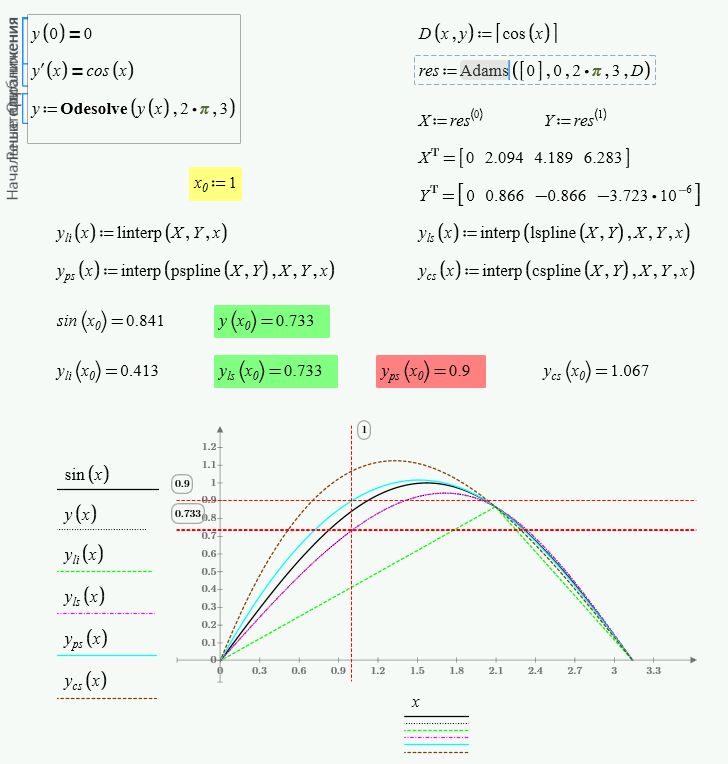

A simple test that shows the interpolation method used by the ODE solver. Obviously, the lspline() function is used.

Odesolve() with rkfixed method (Mathcad 15).

Odesolve interpolation test.mcd.zip (8.84 KiB) downloaded 277 time(s).

The same for Mathcad Prime 7.0 (Adams method used).

Russia ☭ forever, Viacheslav N. Mezentsev

1 users liked this post

Davide Carpi 2021/11/29 06:40:00

#98 Posted: 2021/11/29 20:31:00

Вячеслав Мезенцев

1,532 likes in 1,838 posts.

Group: Moderator

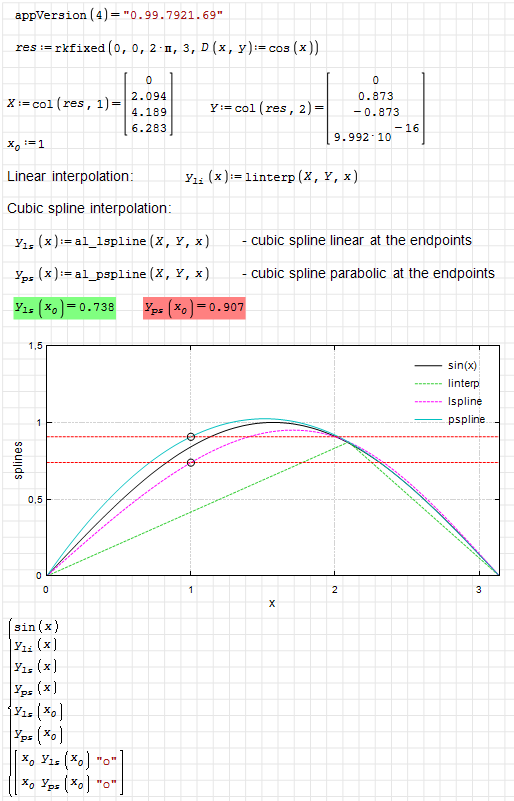

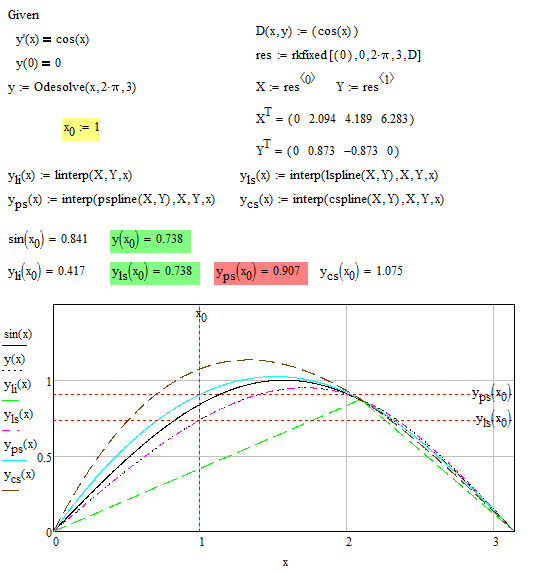

Ok, I found a bug in rkfixed() and finally figured out the difference between interpolation functions. In the picture below, I repeated part of the calculations from Mathcad. As you can see, to interpolate the numerical solution of the ODE, a cubic spline is used, linear at the end points.
