Numerical parameterization implicit surfaces of the form f (x, y, z) = 0

#1 Posted: 2015/5/29 20:25:23

520 likes in 451 posts.

Group: User

The grid lines are found by Draghilev Method
Method 1.
Building a line of intersection of the required surface
with the plane x = 0. This line is rotated in steps of 2 * Pi / s
about a vertical axis by an angle 2 * Pi, where s is the number of steps (the grid lines)

1 users liked this post

Davide Carpi 2015/5/31 07:19:00

#2 Posted: 2015/5/29 20:39:51

Fridel Selitsky

520 likes in 451 posts.

Group: User

Method 2.
The rectangular grid

ELLIPSE3d2.pdf (631.16 KiB) downloaded 517 time(s).

1 users liked this post

Davide Carpi 2015/5/31 07:19:00

#3 Posted: 2016/12/17 18:17:47

Fridel Selitsky

520 likes in 451 posts.

Group: User

The graph an implicit surface depicted by lines
Examples of the idea of the algorithm taken from the publication of Alexey Ivanov
http://www.mapleprimes.com/questions/219995-Finding-A-Convinient-Parametrization-Of-Surfaces#answer233804

File not found.File not found.File not found.File not found.File not found.

3 users liked this post

Вячеслав Мезенцев 2016/12/19 01:43:00, Davide Carpi 2016/12/18 19:04:00, frapuano 2016/12/18 05:42:00

#4 Posted: 2017/1/29 16:56:41

Fridel Selitsky

520 likes in 451 posts.

Group: User

Two surfaces are taken from the site
http://xrt.wikidot.com/gallery:implicit
The calculation algorithm:
1.Find the line of intersection of the given surface with the plane Z=0
2.Through each point hold the plane x1 = C and find the line of intersection of that plane with a given surface.These lines represent a given surface.

File not found.File not found.

1 users liked this post

Davide Carpi 2017/1/30 09:18:00

#5 Posted: 2017/1/29 23:28:16

Jean Giraud

983 likes in 6,866 posts.

Group: User

Thanks for these two animations. In each one, the last three plots
stay red, though the animated plot works fine. A small detail:
each work sheet has three definitions left over at page 17.

Jean

1 users liked this post

Davide Carpi 2017/1/30 09:18:00

#6 Posted: 2017/1/30 03:51:39

Fridel Selitsky

520 likes in 451 posts.

Group: User

Thank you Jean,
Worksheets corrected. In addition, in the algorithm for calculating along with x1 = C can be used x2 = C:

double torus x2.sm (73.26 KiB) downloaded 735 time(s).

2 users liked this post

Davide Carpi 2017/1/30 09:18:00, NDTM Amarasekera 2017/1/30 11:30:00

#7 Posted: 2017/1/31 17:50:55

Fridel Selitsky

520 likes in 451 posts.

Group: User

The tube in the form of a line of intersection of the cylinder and the torus (See post 7)
http://en.smath.info/forum/yaf_postst2307_Method-A-B--Draghilev-and-animation-spatial-mechanisms.aspx

Time calculation, 9 min.
Villarceau 9.sm (39.38 KiB) downloaded 679 time(s).

1 users liked this post

Davide Carpi 2017/2/1 05:58:00

#8 Posted: 2017/3/1 04:25:37

Fridel Selitsky

520 likes in 451 posts.

Group: User

Helical Tube

NonCirc.sm (53.28 KiB) downloaded 677 time(s).
TubeCir.sm (53.28 KiB) downloaded 714 time(s).

1 users liked this post

Davide Carpi 2017/3/1 06:42:00

#9 Posted: 2017/3/1 04:44:07

Fridel Selitsky

520 likes in 451 posts.

Group: User

The surface of the Wikipedia
https://en.wikipedia.org/wiki/File:Tri-brezel.svg

WiciSurf.sm (106.91 KiB) downloaded 722 time(s).

1 users liked this post

Davide Carpi 2017/3/1 06:42:00

#10 Posted: 2017/6/14 13:27:49

Fridel Selitsky

520 likes in 451 posts.

Group: User

Non-circular cylindrical vessels with quasi-ellipsoidal ends
Krivoshapko S.N. Ivanov V.N,Encyclopedia of Analytical Surfaces ,Springer,2015

Non-circular cylindrical vessels.pdf (1.26 MiB) downloaded 448 time(s).
Non-circular cylindrical vessels.sm (209.71 KiB) downloaded 706 time(s).
Shell1.sm (255.15 KiB) downloaded 737 time(s).
Shell2.sm (33.38 KiB) downloaded 731 time(s).
Shell3.sm (34.18 KiB) downloaded 702 time(s).

#11 Posted: 2017/6/15 09:43:57

Jean Giraud

983 likes in 6,866 posts.

Group: User

Thanks Ber7 for the work sheets [Not finished downloading].
If you visit this document, I'm wondering:
"How to add red points in this plot".

Thanks in advance ... Jean

Maths sph2xyz.sm (13.82 KiB) downloaded 741 time(s).

#12 Posted: 2017/6/15 12:23:51

Fridel Selitsky

520 likes in 451 posts.

Group: User

Hello Jean,
Unfortunately, the 3d chart does not allow you to draw points.
Exit (hopefully temporary) -make a 3d chart on a 2d chart.
Maths sph2xyz2d.sm (21.1 KiB) downloaded 705 time(s).

#13 Posted: 2018/2/6 03:56:52

Fridel Selitsky

520 likes in 451 posts.

Group: User

Implicit surfaces in Maxima

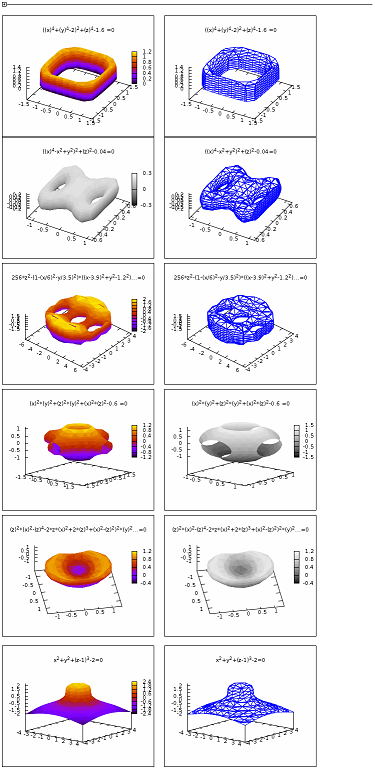

ImplicitMaxima.sm (363.82 KiB) downloaded 719 time(s).

3 users liked this post

frapuano 2018/2/6 04:34:00, Martin Kraska 2018/2/6 04:59:00, Radovan Omorjan 2018/2/6 06:22:00

#14 Posted: 2018/2/6 05:06:49

Martin Kraska

1,308 likes in 2,221 posts.

Group: Moderator

Nice examples!

Just some remarks for those who want to play around with Maxima Draw.

Instead of Image region with Draw() command you can use Maxima Draw3D region with interactive zoom, rotation and resize and a settings dialog.
Insert-> Maxima-> Draw3D
The performance isn't overwhelming, as the image is recalculated for each interaction.
The snippet "draw" provides help texts for the available draw commands and options.
Follow the link in my signature to see how to configure SMath with Maxima.

ImplicitMaxima_Kr.sm (492.51 KiB) downloaded 739 time(s).

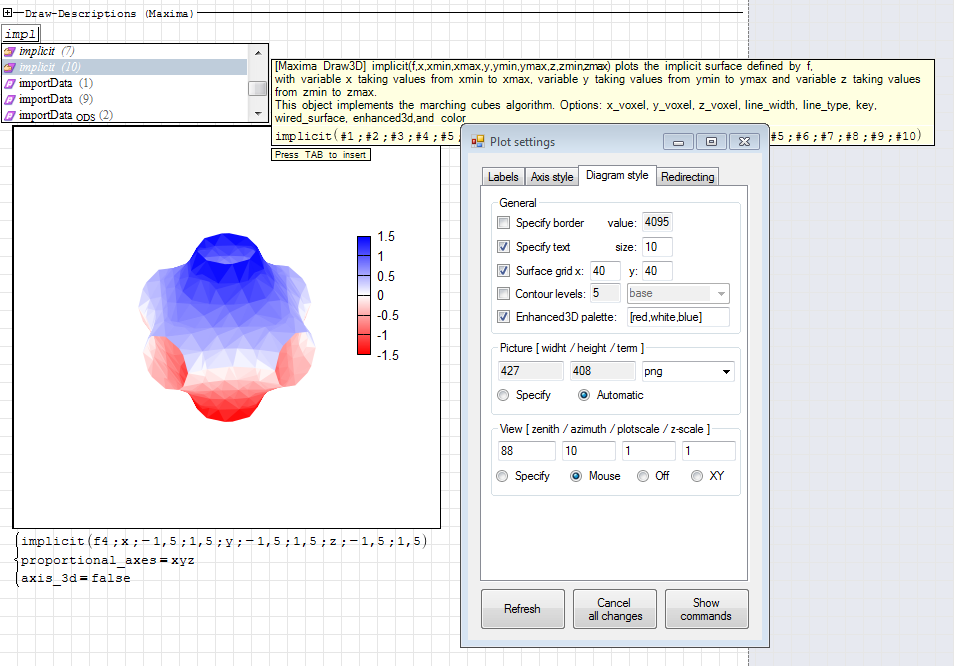

2018-02-06 08_55_49-SMath Studio - [ImplicitMaxima.sm_].png

Martin KraskaPre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

4 users liked this post

Вячеслав Мезенцев 2018/2/6 06:15:00, Radovan Omorjan 2018/2/6 06:22:00, frapuano 2018/2/6 10:28:00, Fridel Selitsky 2018/2/6 05:08:00

#15 Posted: 2018/2/21 16:41:18

Fridel Selitsky

520 likes in 451 posts.

Group: User

Continuation:

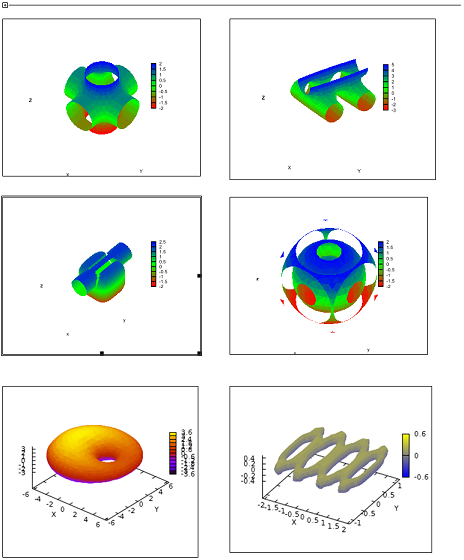

MaximPlus1.sm (237.91 KiB) downloaded 703 time(s).

1 users liked this post

frapuano 2018/2/21 18:56:00
