Isotherm - How to draw it in h-s diagram - Messages

Go to last post

#1 Posted: 2024/5/20 18:28:22

64 likes in 670 posts.

Group: User

File not found.File not found.

#2 Posted: 2024/5/21 00:44:16

1,078 likes in 1,749 posts.

Group: User

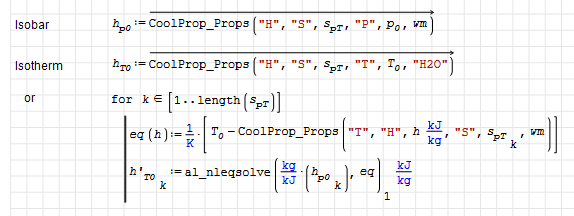

Hi. Comparing the result with the other water compound implementation.

h-s-diagram-Steam.sm (28.14 KiB) downloaded 834 time(s).

Best regards.
Alvaro.

1 users liked this post

Valery Ochkov 2024/5/21 01:34:00

#3 Posted: 2024/5/21 01:38:28

64 likes in 670 posts.

Group: User

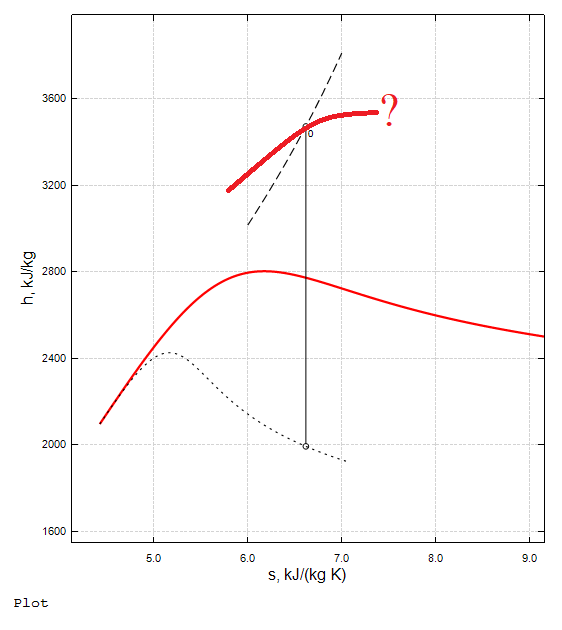

My solution. Now I'm thinking about isochore and second isotherm.
h-s-diagram-Steam.sm (31.02 KiB) downloaded 891 time(s).

#4 Posted: 2024/5/21 11:03:47

64 likes in 670 posts.

Group: User

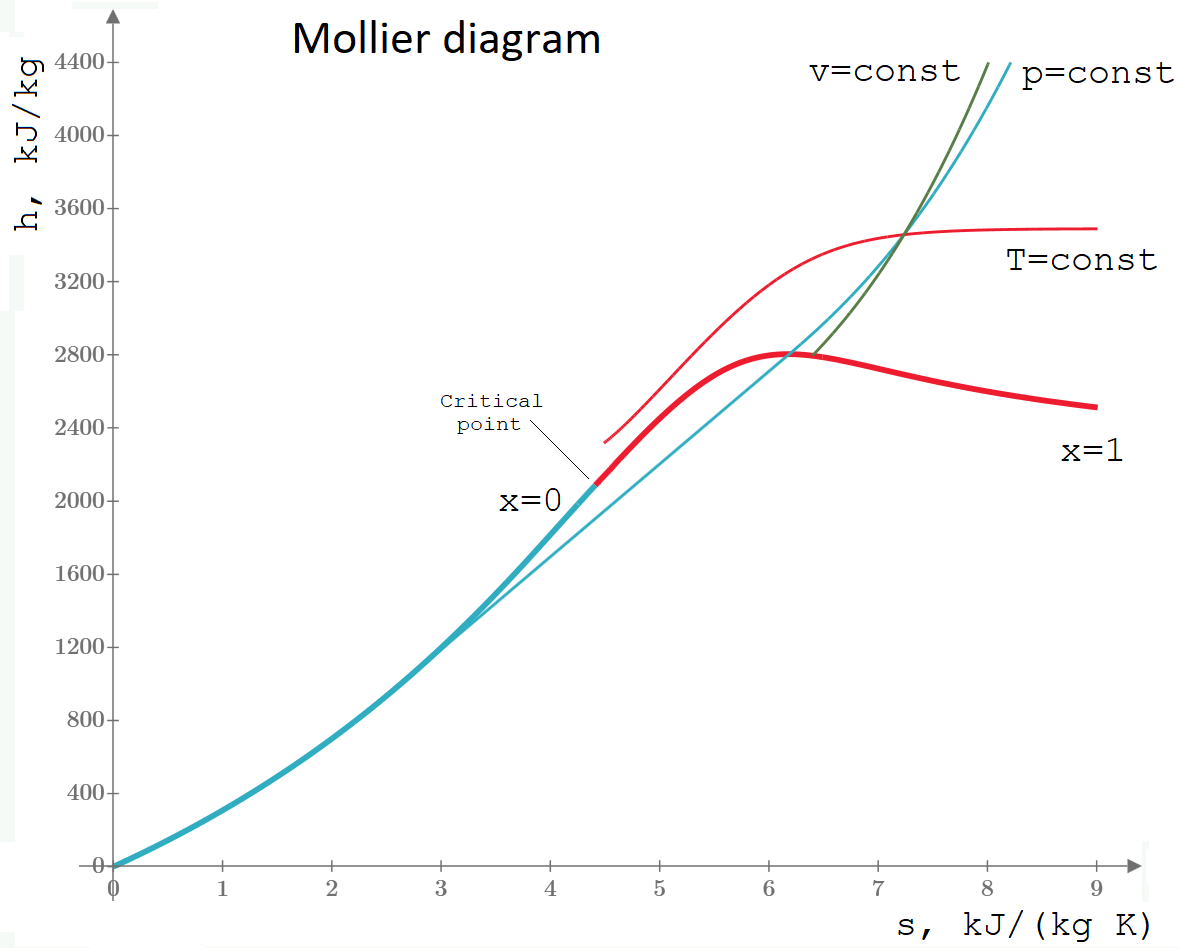

With Mathcad Prime and WaterSteamPro

#5 Posted: 2024/5/22 17:06:11

64 likes in 670 posts.

Group: User

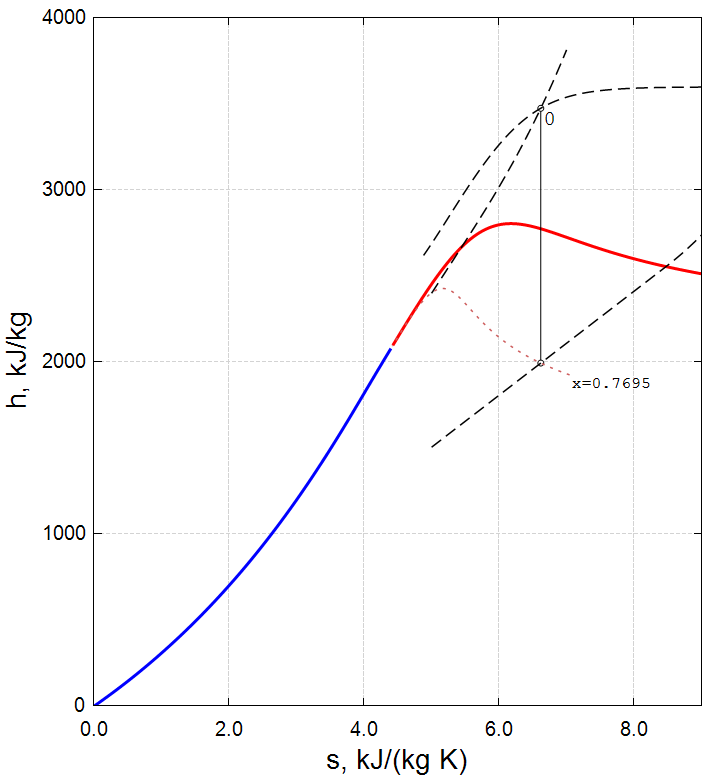

New version
h-s-diagram-Steam.sm (41.67 KiB) downloaded 855 time(s).
