#1 Posted: 1/22/2026 10:52:55 AM

1 likes and 1 dislikes in 15 posts.

Group: User

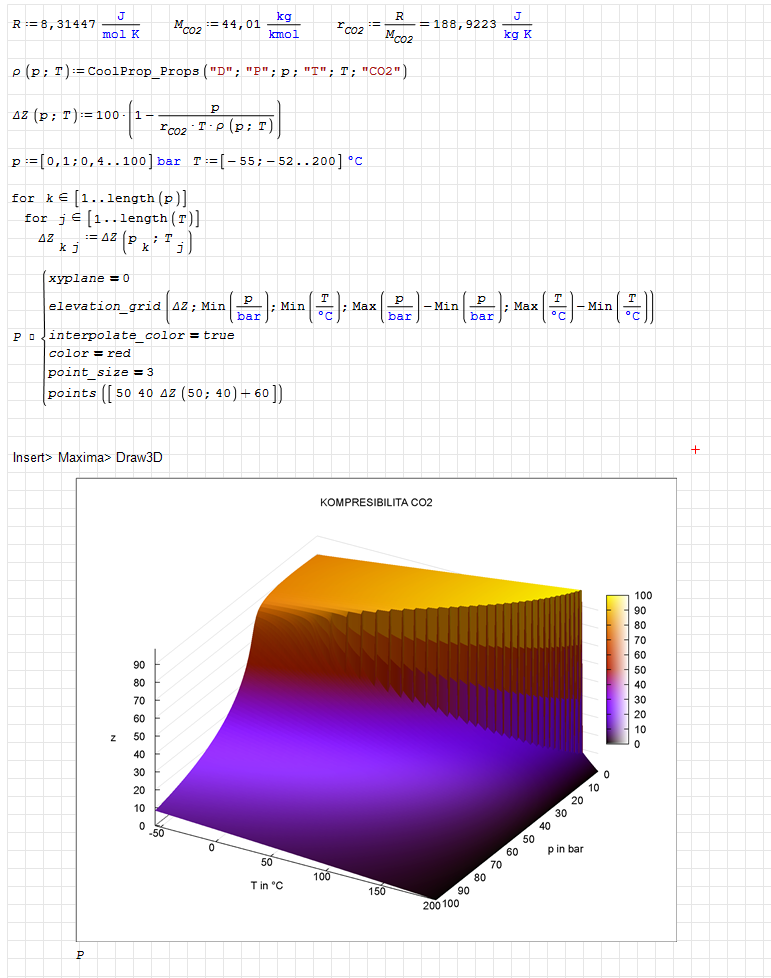

Hi, i would like to add some points to 3D plot. How can I do that?
And can i somehow make the plot smooth without using smaller steps in vectors?

Kompresibilita_3D.sm (56.04 KiB) downloaded 237 time(s).

Thanks for answers,
Tomas

Edited 1/22/2026 10:54:05 AM

#2 Posted: 1/22/2026 2:08:14 PM

Martin Kraska

1,332 likes in 2,241 posts.

Group: Moderator

You could try to create a mesh of triangles or quadrilateral objects. Then you are free to use a problem-adjusted surface parametrization.

Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9

#3 Posted: 1/27/2026 9:55:32 PM

Tomas Novotny

1 likes and 1 dislikes in 15 posts.

Group: User

Hi,
thanks for your answer. I have another question. I´m trying to make graph of water density, but the axes are not right, what is wrong?

hustota vody.sm (69 KiB) downloaded 140 time(s).

Thanks,
Tomáš

#4 Posted: 1/28/2026 12:09:04 AM

Martin Kraska

1,332 likes in 2,241 posts.

Group: Moderator

This is probably due to the "visual" indexing in the matrix.

Rows in a matrix are increasing top-down, whereas values in y are increasing bottom-up.

Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9

#5 Posted: 1/28/2026 8:23:58 AM

Tomas Novotny

1 likes and 1 dislikes in 15 posts.

Group: User

Thanks you very much! That helped.
But if i want to make axes right i have to switch x and y axes in elevation grid command. I don’t know why.

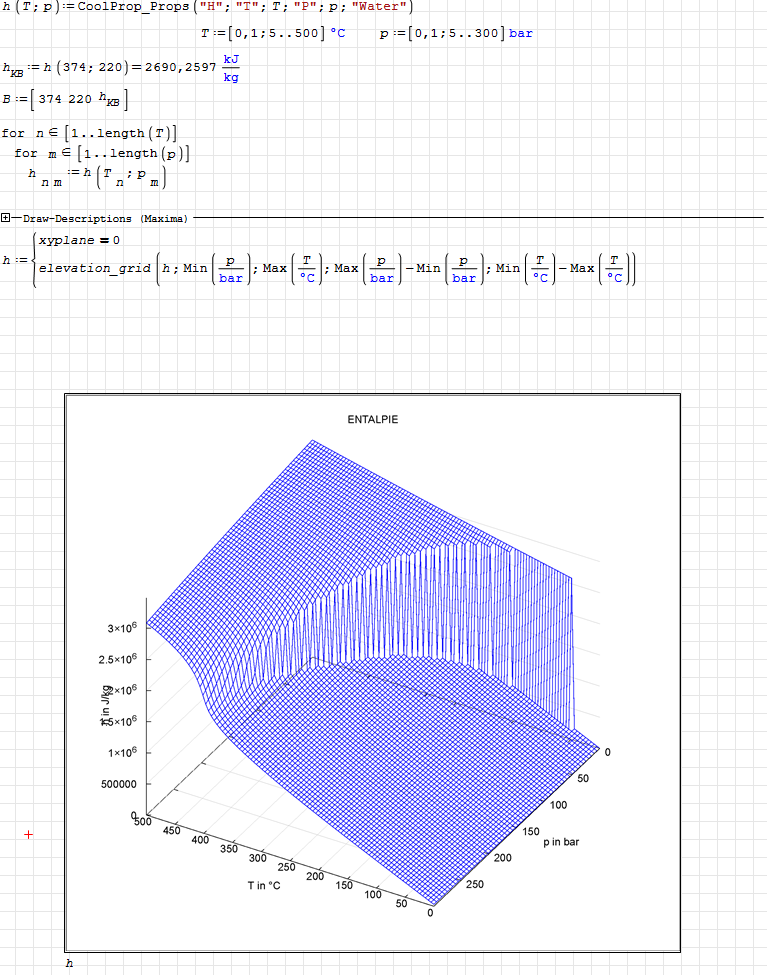

hustota vody.sm (135.01 KiB) downloaded 152 time(s).

Is there any sheet of something like that, where I can fing all comands for plots? And how can I write them, because commands that I used, I copied from some file I found.

Thanks for answers,
Tomáš

#6 Posted: 1/28/2026 5:30:00 PM

Martin Kraska

1,332 likes in 2,241 posts.

Group: Moderator

See topic starter https://smath.com/en-US/forum/topic/cnc5Xp/Maxima-Plugin. I added some references there.

Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9

#7 Posted: 1/28/2026 7:33:40 PM

Tomas Novotny

1 likes and 1 dislikes in 15 posts.

Group: User

That is awesome!

Thanks,
Tomáš

#8 Posted: 2/6/2026 11:03:04 AM

Tomas Novotny

1 likes and 1 dislikes in 15 posts.

Group: User

Hi,

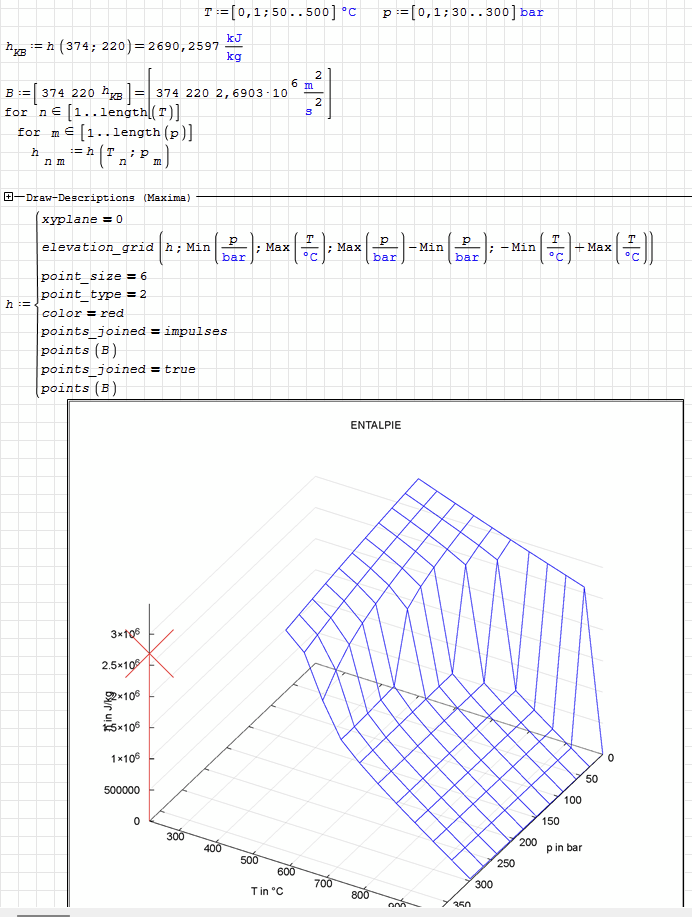

how can I add point B to plot? When I tried I make point or plot, but not both of them.

kriticky_bod.sm (202.22 KiB) downloaded 86 time(s).

Thanks for answers,
Tomas

#9 Posted: 2/6/2026 1:25:26 PM

Martin Kraska

1,332 likes in 2,241 posts.

Group: Moderator

Seems to be related to the negative temperature range in the elevation_grid command.

Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9

#10 Posted: 2/10/2026 7:29:28 AM

Tomas Novotny

1 likes and 1 dislikes in 15 posts.

Group: User

Thanks for answer,

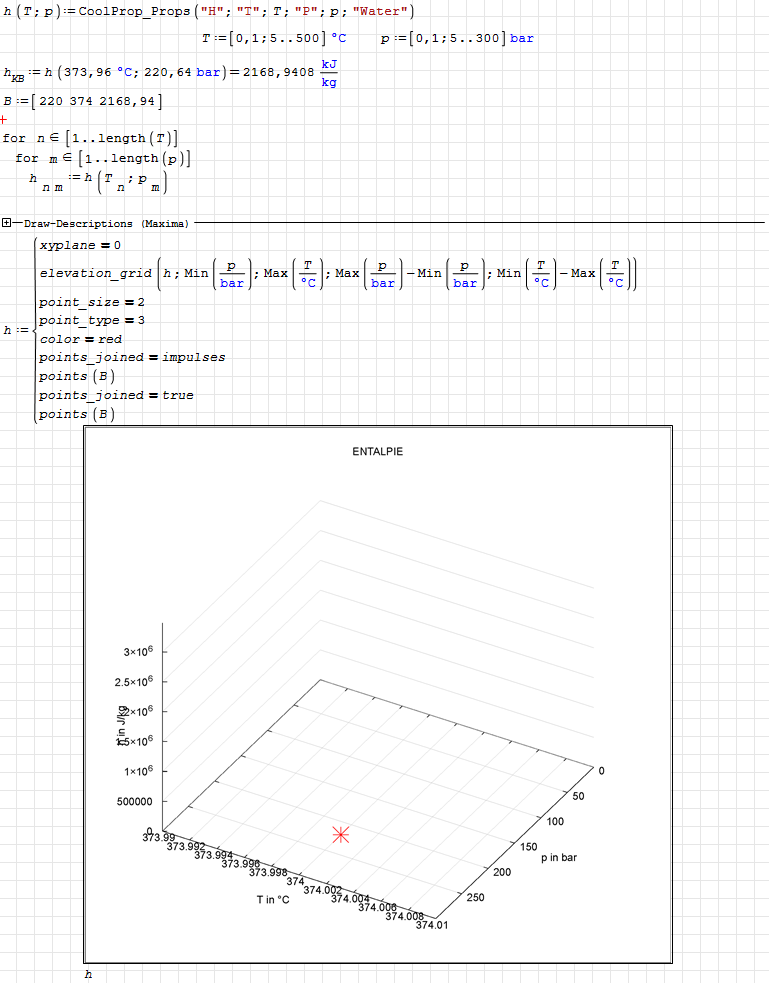

I tried to fix it and I ended with this. Still can t plot graph and point together.

kriticky_bod.sm (201.86 KiB) downloaded 69 time(s).

What should I do now?

Tomáš

#11 Posted: 2/10/2026 3:54:04 PM

Martin Kraska

1,332 likes in 2,241 posts.

Group: Moderator

You still have a negative h value (temperature difference). Reverse this (and also reverse the matrix). Then it should work.

Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9

#12 Posted: 2/19/2026 8:34:45 AM

Tomas Novotny

1 likes and 1 dislikes in 15 posts.

Group: User

Thank you very much! It works.

Tomáš

#13 Posted: 2/19/2026 10:12:49 AM

Martin Kraska

1,332 likes in 2,241 posts.

Group: Moderator

Good to see. You also might display the z values in MJ/kg to get nicer tick labels and play around with the view parameters in the settings menu to avoid interference between axis label and tick labels.

Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9

#14 Posted: 2/19/2026 11:38:12 AM

Tomas Novotny

1 likes and 1 dislikes in 15 posts.

Group: User

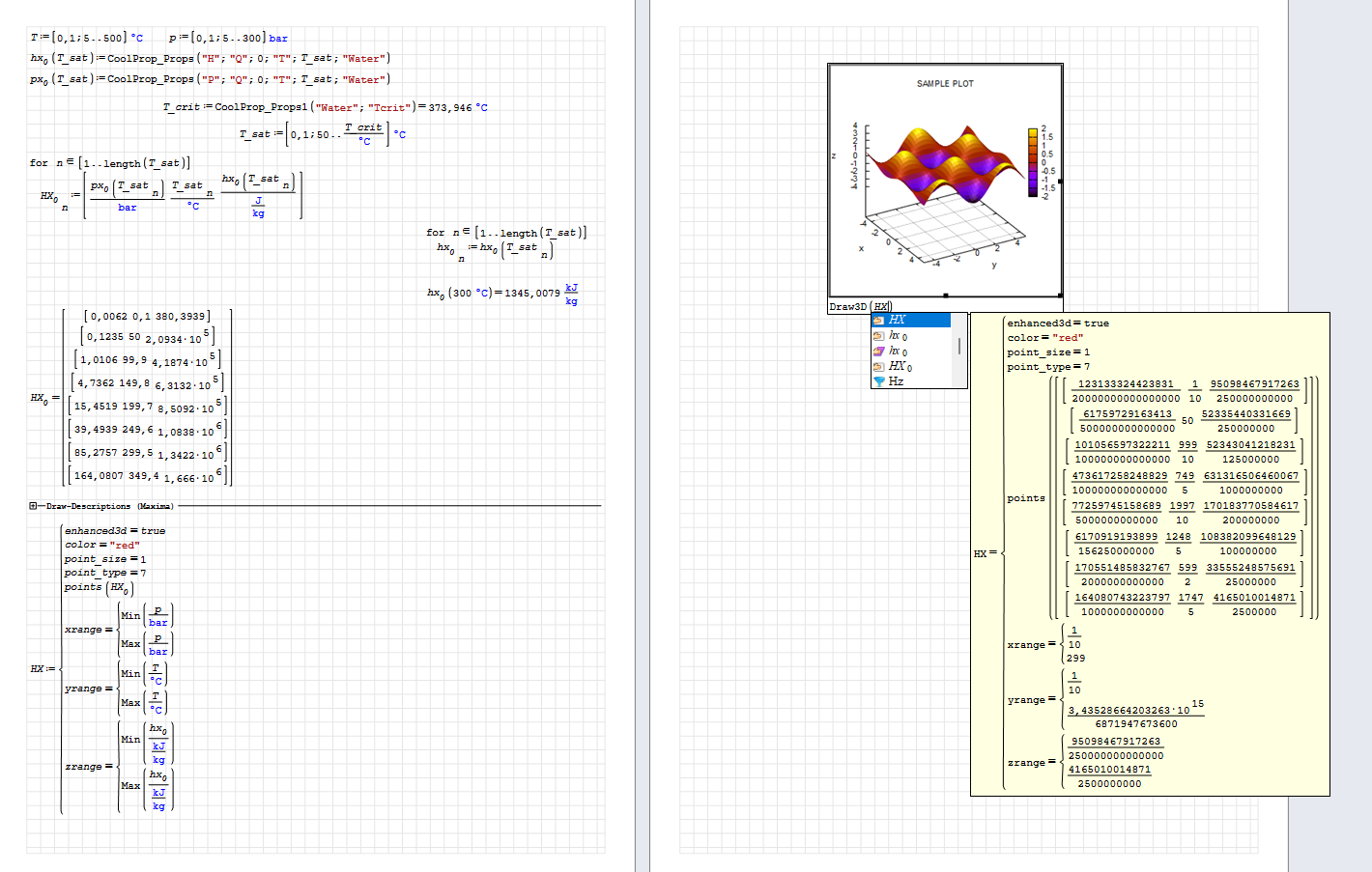

Now I would like to add saturation curve. Is it better to go with matrix or function? And how can I do that?

I tried parametric function, but plot did not work.

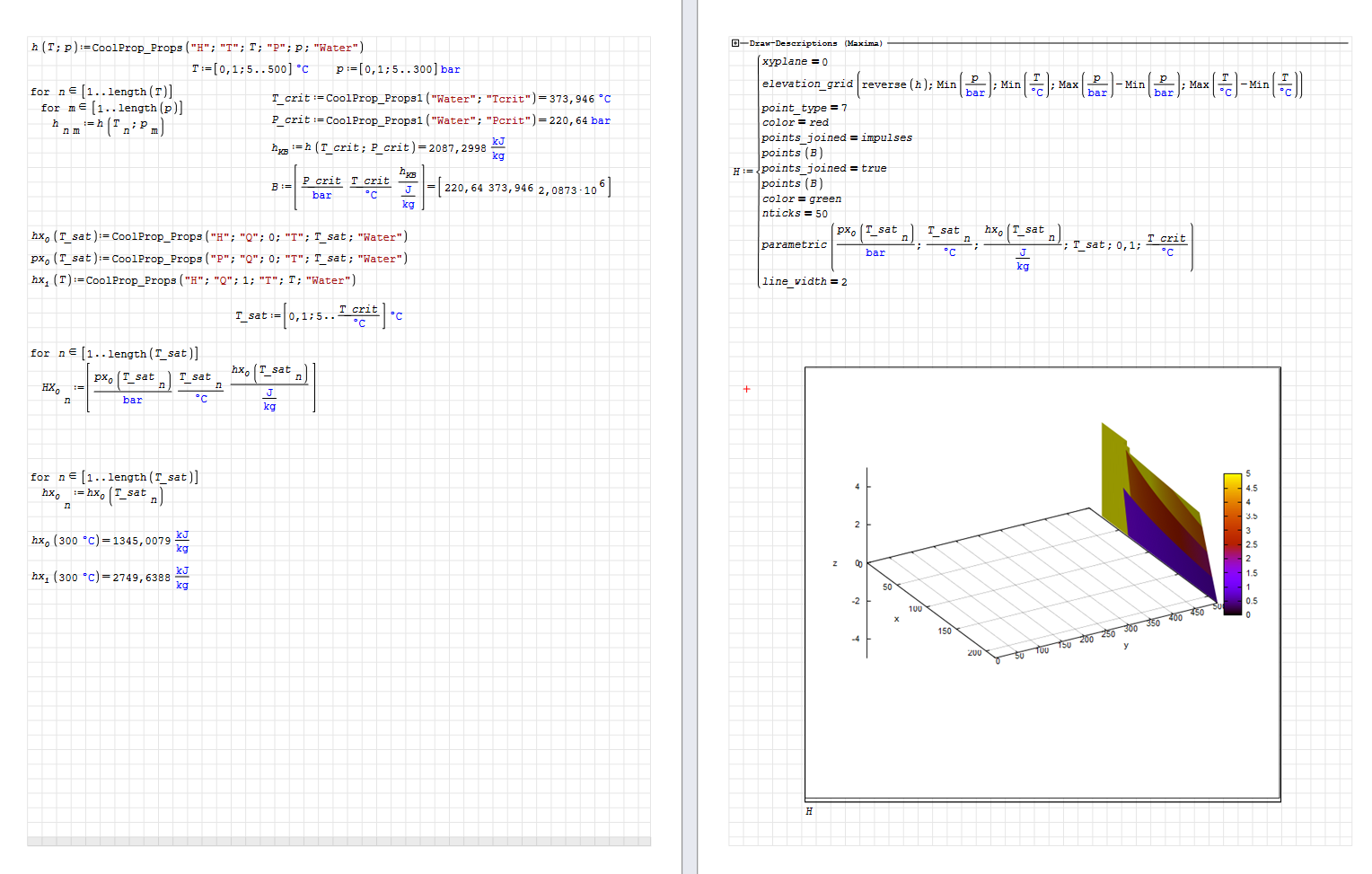

krit_bod_2.sm (211.84 KiB) downloaded 47 time(s).

Thanks for answers!

Tomáš

Edited 2/19/2026 12:05:07 PM

#15 Posted: 2/19/2026 1:01:39 PM

Martin Kraska

1,332 likes in 2,241 posts.

Group: Moderator

I guess it is best to use the points object just like for the single point. Set points_joined to true, point_type to something convenient. Using a function will work only if that function is supported by the interface to Maxima, which probably doesn't apply to coolprop functions or interpolated functions.

Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9

#16 Posted: 2/22/2026 6:05:46 PM

Tomas Novotny

1 likes and 1 dislikes in 15 posts.

Group: User

Hi,
I’m back. I tried to create line of points by maxima handbook. Handbook is really great, but I couldn’t figure it out. What am I doing wrong? Matrix seems right.

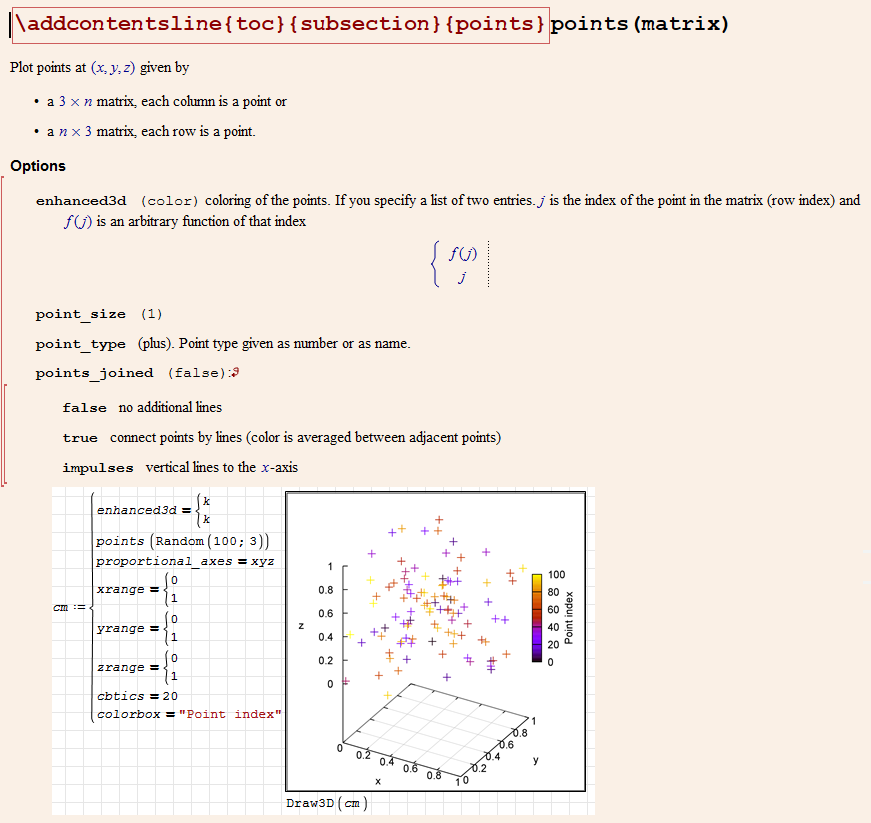

And i have another question. When I created plot of enthalpy I just wrote name of the "plot function". But in the manual, there is Draw3D("plot function"). Why is that?

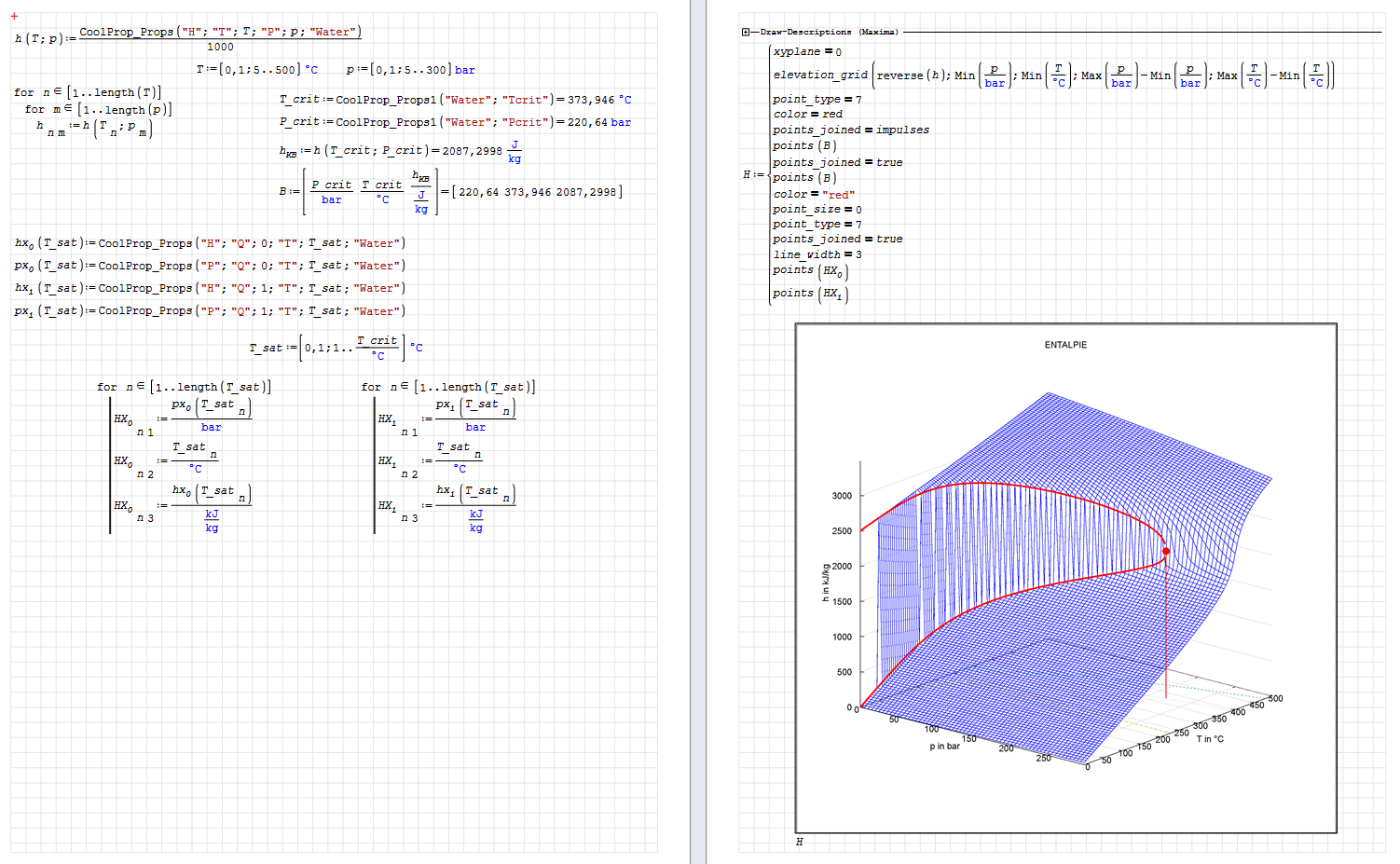

saturation_curve.sm (194.75 KiB) downloaded 32 time(s).

Thanks for your help and patient, I really appriciate it.

Tomáš

#17 Posted: 2/23/2026 10:20:19 AM

Martin Kraska

1,332 likes in 2,241 posts.

Group: Moderator

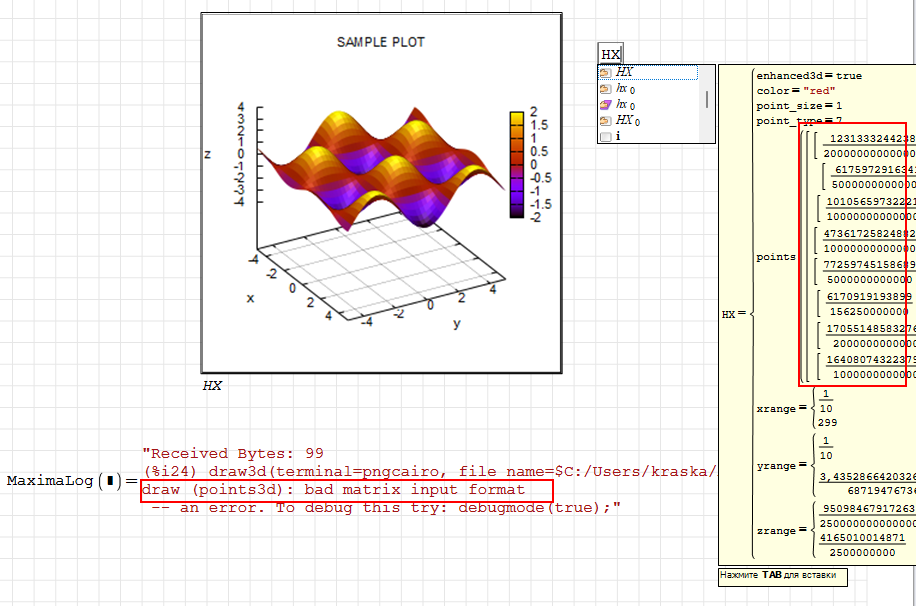

Your data matrix isn't in the correct format. It is a one-column matrix of row vectors. Make it a real n x 3 matrix, then try again.

Also, you use different units when filling the data matrix (J/kg) and for the axis limits (kJ/kg).

As to the Draw3D command, see intro text to Chapter 3.

Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9

#18 Posted: 2/26/2026 12:23:13 PM

Tomas Novotny

1 likes and 1 dislikes in 15 posts.

Group: User

Hi,
finally I’v done it! Thank you very much Martin! I think it looks great.
Now I would like to continue and mabye try to make something bigger and try to use Smath viewer.

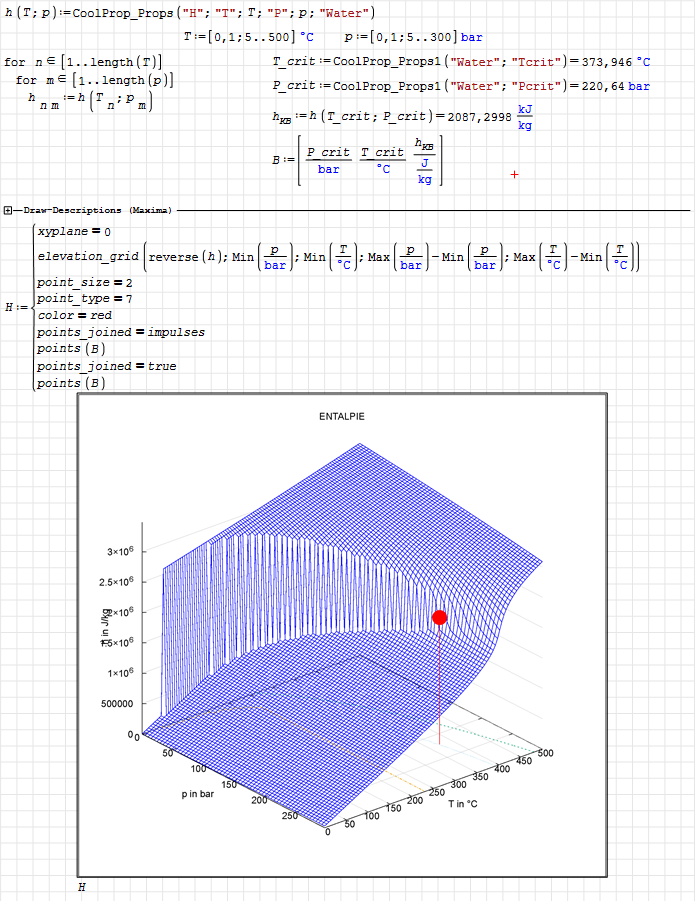

Entalpie_pT.sm (156.56 KiB) downloaded 25 time(s).

Tomáš

1 users liked this post

Martin Kraska 2/26/2026 4:32:09 PM

#19 Posted: 2/26/2026 4:31:44 PM

Martin Kraska

1,332 likes in 2,241 posts.

Group: Moderator

Interesting example. It would also be interesting to set up a chat bot with knowledge of all the SMath handbooks and forum posts.

BTW, I didn't test the viewer with the Maxima plugin, at least no particular provisions have been made to make it work in the viewer. Strictly speaking, such a viewer executable would need to contain a portable Maxima installation. This is not a trivial thing, as a lot of environment variables have to be set, In the begin of the development, we used to modify the Maxima installation (Maxima.bat under Windows), yet that had to be updated for each new version of Maxima, so that we switched using a non-modified entirely generic Maxima installation on the computer. Up to now this approach seems to be robust, yet not portable.

There have been multiple examples of using 2D plots for 3D diagrams by means of coordinate transformations. That might be a Viewer-proof option.

Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
