Conditionally Formatted Labels

#81 Posted: 2 years ago

0 likes in 8 posts.

Group: User

Here it is.
losa-forum.sm (862 KiB) downloaded 56 time(s).

Sorry Jean but i don't understand what i'm supposed to see. I also get "data - not defined".

#82 Posted: 2 years ago

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Sorry Jean but I don't understand what I'm supposed to see. I also get "data - not defined".

data not defined probably indicates some plugins not installed.
Maybe other problems wrt your version.

#83 Posted: 2 years ago

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Here it is.

Document does not open ... incorrect format

#84 Posted: 2 years ago

German

0 likes in 8 posts.

Group: User

SMath Studio Desktop 64-bit
Version: 1.0(build: 8348)
Date: 9/11/2022

ConditionallyFormattedLabel: 1.0.8138.35454

#85 Posted: 2 years ago

Davide Carpi

1417 likes in 2873 posts.

Group: Moderator

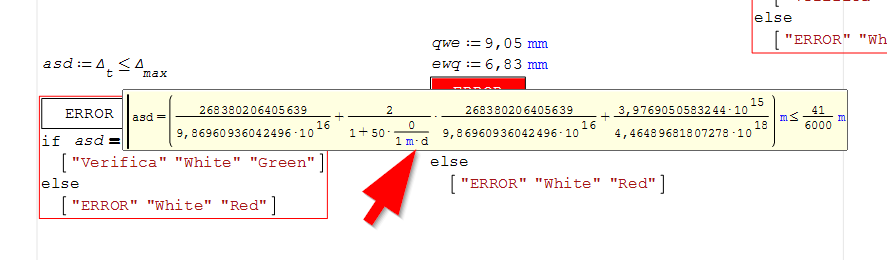

If you hover over the asd definition you can see that there is an unsolved "d" dependancy that triggers the error.

2023-01-17 15_10_16-SMath Solver - [losa-forum.sm_].png

The same happens if you try to force a numerical evaluation using eval()

2023-01-17 15_23_37-SMath Solver - [losa-forum.sm_].png

If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects

#86 Posted: 2 years ago

German

0 likes in 8 posts.

Group: User

Wrote
If you hover over the asd definition you can see that there is an unsolved "d" dependancy that triggers the error.

The same happens if you try to force a numerical evaluation using eval()

That is it!

As allways thanks!!

But still don't understand why Jean files fails.

#87 Posted: 2 years ago

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
SMath Studio Desktop 64-bit
Version: 1.0(build: 8348)
Date: 9/11/2022

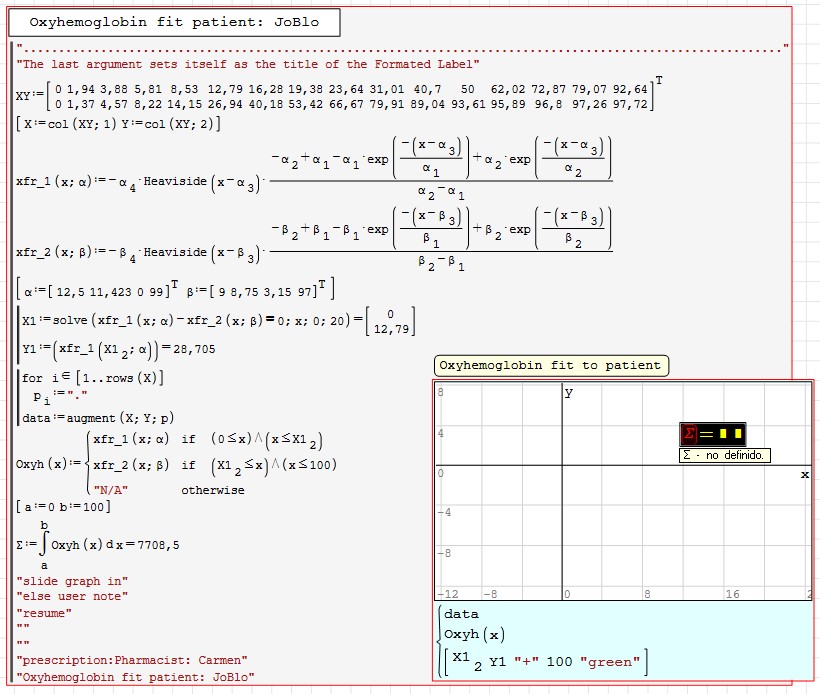

Slide left the Formatted Label
Side right the graph, remove the Σ no definido

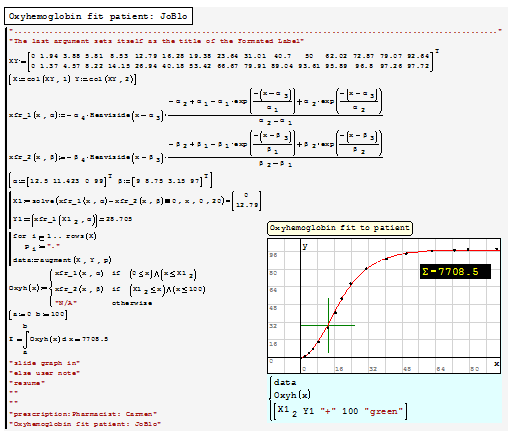

You should see the plot.

#88 Posted: 2 years ago

Davide Carpi

1417 likes in 2873 posts.

Group: Moderator

Wrote
That is it!

As allways thanks!!

You're welcome!

Wrote
But still don't understand why Jean files fails.

~~There is an excel data import at the begin of the file, is not related to the issue however so it doesn't matter.~~ nevermind I was looking at your file.

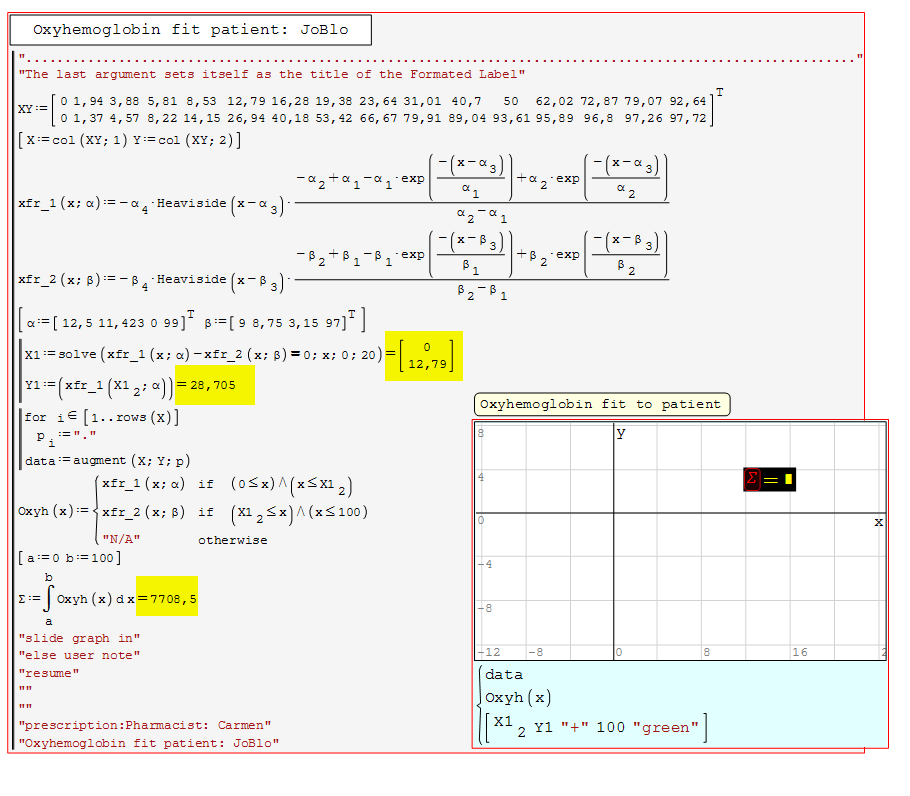

If you remove the 3 inline evaluations it will work.

2023-01-17 16_28_05-SMath Solver - [Image Formated LABEL [Oxyhemoglobin] FORUM.sm].png

If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects

#89 Posted: 2 years ago

German

0 likes in 8 posts.

Group: User

Wrote

~~There is an excel data import at the begin of the file, is not related to the issue however so it doesn't matter.~~ nevermind I was looking at your file.

My file can be an example of things NOT to do.

Wrote

If you remove the 3 inline evaluations it will work.

#90 Posted: 2 years ago

Rogalski

0 likes in 7 posts.

Group: User

Hi,
Can we manage the units that are displayed?
I have a load in kN/m2 and the result appears as kg/(m*s2).
The idea is to present only positive values (with the appropriate unit).

kind regards

Conditionally Formatted Labels_unity.sm (5 KiB) downloaded 66 time(s).

#91 Posted: 2 years ago

Davide Carpi

1417 likes in 2873 posts.

Group: Moderator

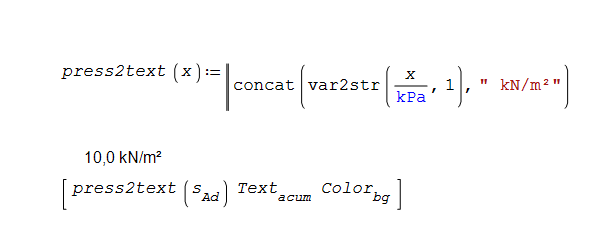

The easier way might be something like this

2023-10-14 18_53_23-SMath Solver - [Conditionally Formatted Labels_unity.sm_].png

press2text(x):line(concat(var2str(x/'kPa,1),"\0020\kN\002F\m\00B2\",1,1)

If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects

1 users liked this post

Oscar Campo 2 years ago

#92 Posted: 2 years ago

Rogalski

0 likes in 7 posts.

Group: User

Thank you very much.
This is exactly what I needed.

#93 Posted: 2 years ago

Rogalski

0 likes in 7 posts.

Group: User

Hi,
I'm looking for a way to represent the letter D as a subscript. Unfortunately, Unicode doesn't seem to provide this option...

Is there any possibility to parameterize individual characters that will be presented?

#94 Posted: 2 years ago

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
I'm looking for a way to represent the letter D as a subscript

You can subscribe whatever.
mysystem dot HelloGrandMa

#95 Posted: 2 years ago

Rogalski

0 likes in 7 posts.

Group: User

Wrote

Wrote
I'm looking for a way to represent the letter D as a subscript

You can subscribe whatever.
mysystem dot HelloGrandMa

Hi,

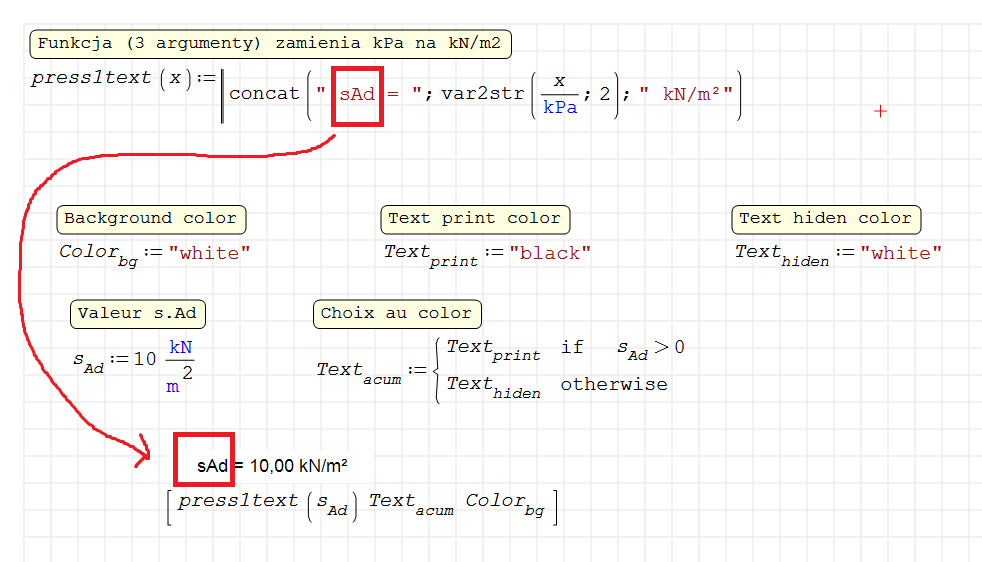

thanks for the information, but I'm not sure if I expressed myself correctly. I mean the subscripts in the "phrases" that I marked in the drawing.

Davide sent the function shown above in which I need to use subscripts.

#96 Posted: 2 years ago

Oscar Campo

124 likes in 298 posts.

Group: Moderator

Davide used superscript unicode character for write: "kN\002F\m\00B2\" wich renders as "kN/m²" so, you can use unicode characters...but not all characters have subscript version.

Please check here: https://www.compart.com/en/unicode/search?q=subscript#characters

Oscar

#97 Posted: 2 years ago

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

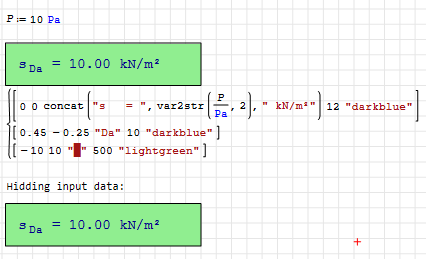

Hi Karol. This could be a workaround, using the SMath Plot region.

label.sm (6 KiB) downloaded 60 time(s).

Best regards.
Alvaro.

1 users liked this post

Oscar Campo 2 years ago

#98 Posted: 2 years ago

Jean Giraud

983 likes in 6866 posts.

Group: User

Subscripts in native Solver 30405.
Collect as many the project needs,
call the wanted by indexing.

Maths Subscript.sm (10 KiB) downloaded 59 time(s).

#99 Posted: 2 years ago

Rogalski

0 likes in 7 posts.

Group: User

Wrote
Hi Karol. This could be a workaround, using the SMath Plot region.

label.sm (6 KiB) downloaded 60 time(s).

Best regards.
Alvaro.

Wow great Alvaro. Thank you very much.
I'm impressed.

#100 Posted: 2 years ago

Rogalski

0 likes in 7 posts.

Group: User

Wrote
Subscripts in native Solver 30405.
Collect as many the project needs,
call the wanted by indexing.

Maths Subscript.sm (10 KiB) downloaded 59 time(s).

Jean Giraud,
Thank you too.
But I have to put in some effort to understand what you sent.
Kind regards
