Offset surface creation

#1 Posted: 2021/10/10 12:20:33

520 likes in 451 posts.

Group: User

Offset surface creation
An initial surface is given, given by the "createmesh" function, which forms a
network with nodes.
Dyou want to create an offset surface, offset by an amount h from the initial.
The direction of displacement surface epends on the sign of h.

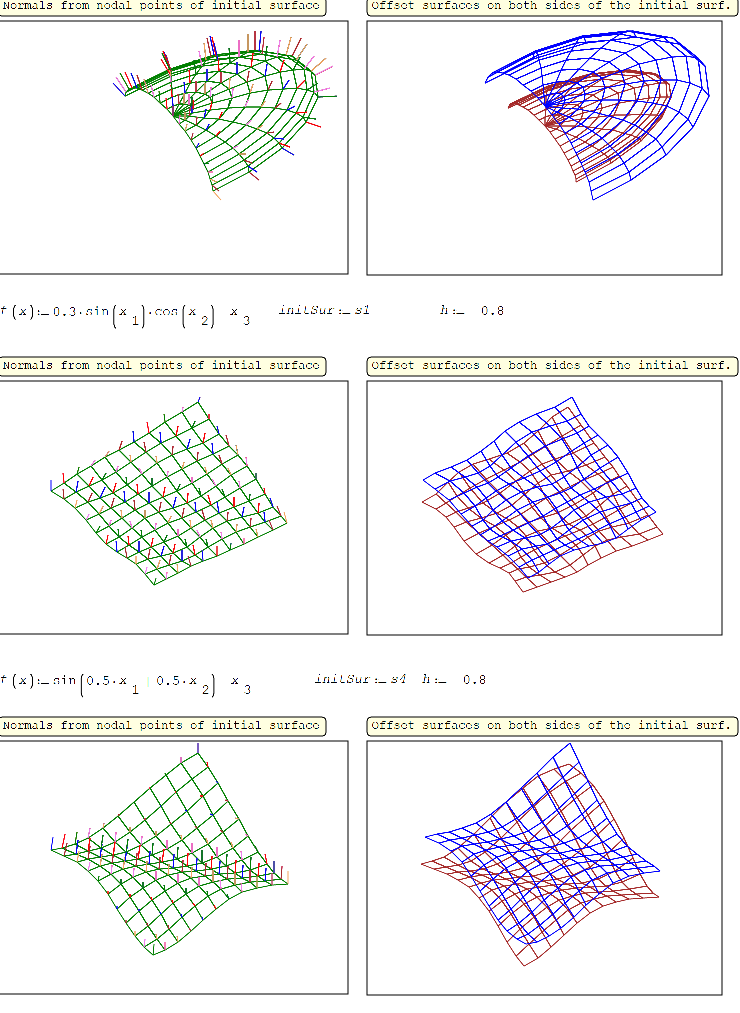

Sequence of calculation:
1.Restoring the normal from the nodal points of the initial surface and we get
the nodal points of the displaced surface.
2.We connect the resulting node points
The image is built on three-dimensional graphics and can be rotated with the mouse

4 users liked this post

Andrey Ivashov 2021/10/19 13:48:00, Oscar Campo 2021/10/20 18:42:00, Davide Carpi 2021/10/20 08:27:00, Alvaro 2021/10/10 20:58:00

#2 Posted: 2021/10/19 11:54:16

Renzo Choque

6 likes in 18 posts.

Group: User

Thank you, this is helpful.
I have a question, How did you put the icon with the link?

#3 Posted: 2021/10/19 13:58:45

Fridel Selitsky

520 likes in 451 posts.

Group: User

Hi,Rezorex.I put the icon with the link using the "hyperlink" insert.
Here is a link to an article from Mapleprimes
https://www.mapleprimes.com/posts/211000-Preparing-A-Parametrized-Surface-For

#4 Posted: 2021/10/20 05:22:00

Alvaro

1,078 likes in 1,749 posts.

Group: User

Hi. Thanis Ber. A slightly different version, using only parametric functions.

Offset surface creation.sm (73.49 KiB) downloaded 843 time(s).

Offset surface creation.pdf (917.17 KiB) downloaded 464 time(s).

Best regards.
Alvaro.

2 users liked this post

Davide Carpi 2021/10/20 08:27:00, Fridel Selitsky 2021/10/20 08:34:00

#5 Posted: 2021/10/20 09:45:16

Fridel Selitsky

520 likes in 451 posts.

Group: User

Thanks Alvaro, I continue to learn from you.
Fridel.

#6 Posted: 2021/10/20 13:31:05

Fridel Selitsky

520 likes in 451 posts.

Group: User

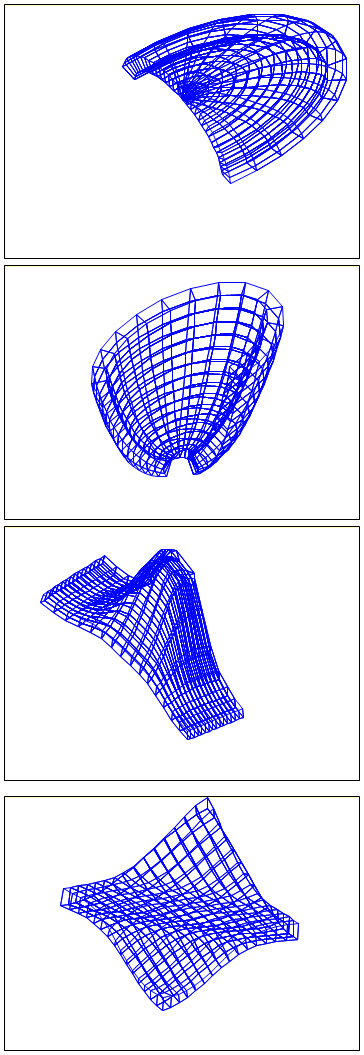

Converting Surfaces to Solids
The solid is formed from the initial surface, the offset surface, and the
lateral surface that connects them. The lateral surface is formed by normals
reconstructed from the boundary nodal points of the initial surface.
Solid.sm (36.96 KiB) downloaded 890 time(s).
Solid.pdf (309.58 KiB) downloaded 466 time(s).

1 users liked this post

Alvaro 2021/10/20 23:56:00

#7 Posted: 2021/10/20 20:43:17

Jean Giraud

983 likes in 6,866 posts.

Group: User

Thanks ► Fridel, Alvaro
I don't have the courage to convert SS 6179 ... OK.
Keep up ... Jean.

Rotate 3D TREASURY_2 Parametric Explorer.sm (33.72 KiB) downloaded 841 time(s).

#8 Posted: 2021/10/21 04:31:50

Alvaro

1,078 likes in 1,749 posts.

Group: User

Wrote
Converting Surfaces to Solids

Hi Fridel. Thanks, great job. In the attached an alternate mesh. Its advantage is that it consists of a single coordinate matrix, so it can be manipulated more easily, with translations, rotations and deformations. As disadvantages, it does not look so good and there may sometimes be a wrong line, but I guess only one.

pSolid_alternate_mesh.sm (51.99 KiB) downloaded 796 time(s).

pSolid_alternate_mesh.pdf (391.97 KiB) downloaded 441 time(s).

Best regards.
Alvaro.

1 users liked this post

Fridel Selitsky 2021/10/21 05:07:00

#9 Posted: 2021/10/24 11:47:27

Fridel Selitsky

520 likes in 451 posts.

Group: User

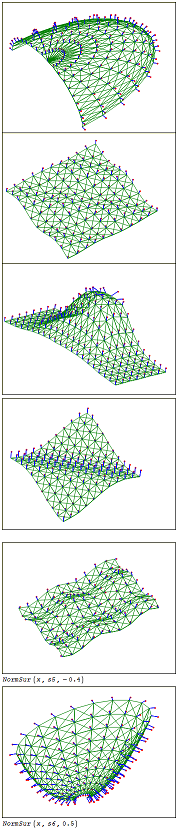

Normal to the surface on Rezonar's triangular mesh
NorSurAlvaro.sm (49.33 KiB) downloaded 850 time(s).
NorSurAlvaro.pdf (623.77 KiB) downloaded 463 time(s).

1 users liked this post

Alvaro 2021/10/24 23:40:00

#10 Posted: 2021/10/24 14:59:18

Jean Giraud

983 likes in 6,866 posts.

Group: User

By same token, did you manage constructing Delaunay ?
We had no chance in Mathcad. Cheers ... Jean.

#11 Posted: 2021/10/25 22:06:52

Alvaro

1,078 likes in 1,749 posts.

Group: User

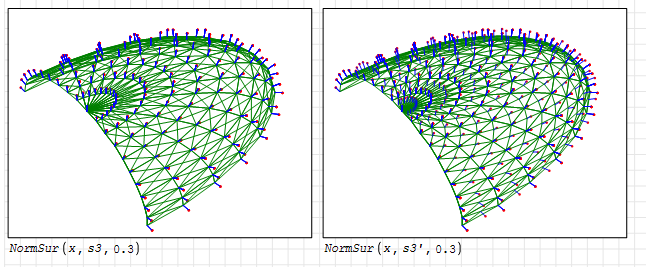

Hi. The same but with a different version for the triangular mesh.

NorSurAlvaro v2.sm (77 KiB) downloaded 830 time(s).

Best regards.

2 users liked this post

Davide Carpi 2021/10/26 14:08:00, Fridel Selitsky 2021/10/25 22:55:00

#12 Posted: 2021/10/26 00:44:19

Fridel Selitsky

520 likes in 451 posts.

Group: User

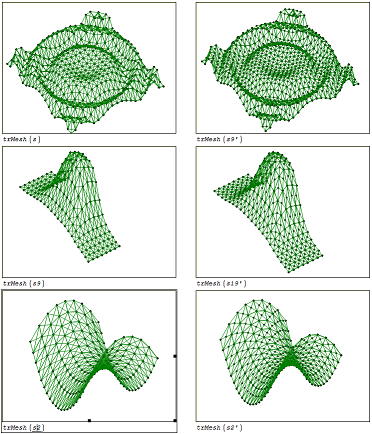

Examples of meshes with vertices
Nodes.sm (49.04 KiB) downloaded 843 time(s).

2 users liked this post

Davide Carpi 2021/10/26 14:08:00, Alvaro 2021/10/26 05:20:00

#13 Posted: 2021/10/26 11:35:04

Fridel Selitsky

520 likes in 451 posts.

Group: User

Animation with triangular meshes
pTriMeshAnimat.sm (22.68 KiB) downloaded 826 time(s).

2 users liked this post

Alvaro 2021/10/26 12:24:00, Davide Carpi 2021/10/26 14:08:00

#14 Posted: 2021/11/11 06:54:12

Fridel Selitsky

520 likes in 451 posts.

Group: User

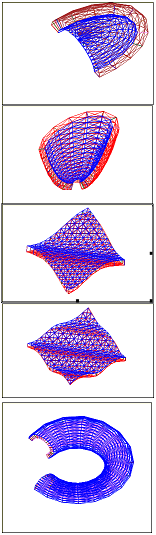

Creating surface thickness with triangular meshes
thickness.sm (56.02 KiB) downloaded 864 time(s).
thickness.pdf (732.98 KiB) downloaded 468 time(s).
