Hi every one. I have some questions.

Q1) When performing symbolic calculations, I currently have to manually set the optimization to 'numeric' (or 'symbolic'/'none') for each region individually. Is there a way to change the default optimization setting to 'symbolic' or 'none' globally?

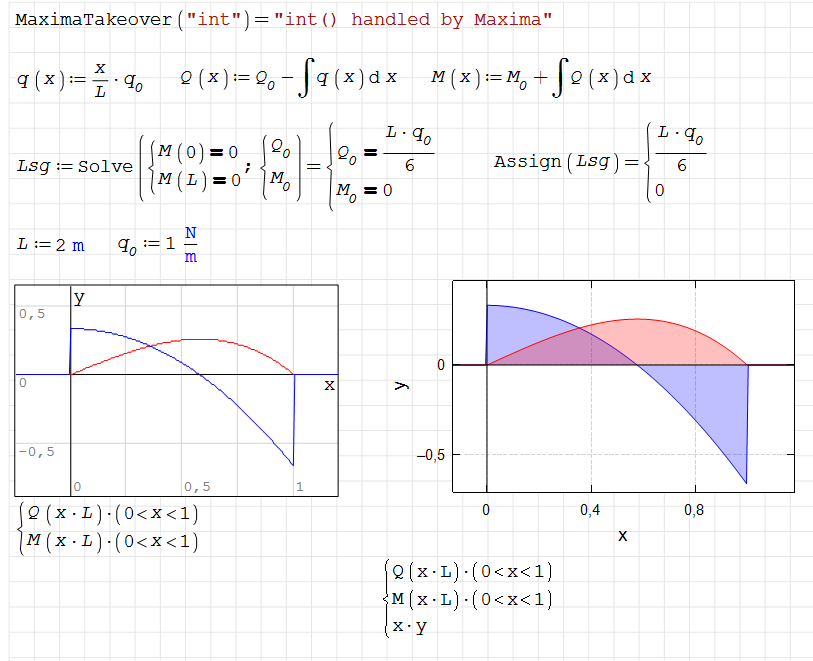

Q2) I have created a worksheet for the SFD and BMD of a simple beam, as shown in the image. I am trying to plot these diagrams using the XY Plot component.How can I restrict the x-axis range to display only the interval from 0 to 1?How can I mark the specific point of M_max on the graph?



Thank you for all.


12.SimpleBeam_01.sm (63.68 KiB) downloaded 9 time(s).

a. From Edit menu select All, then right-click on any blue region and select None from the optimisation section.

b. Double click on the graph and select the various options on the resulting menu - see attached.

12.SimpleBeam_01b.sm (86.53 KiB) downloaded 1 time(s).
