Euler-spiral

#1 Posted: 2023/11/14 03:13:22

Valery Ochkov

64 likes in 670 posts.

Group: User

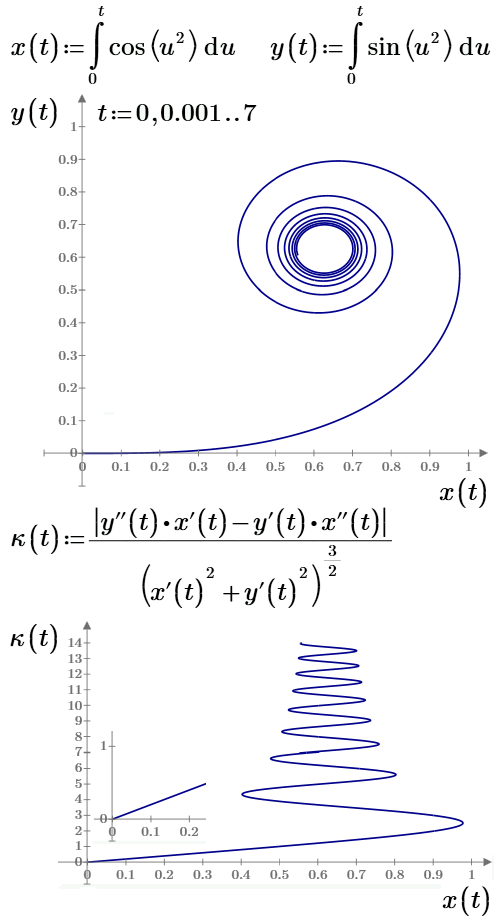

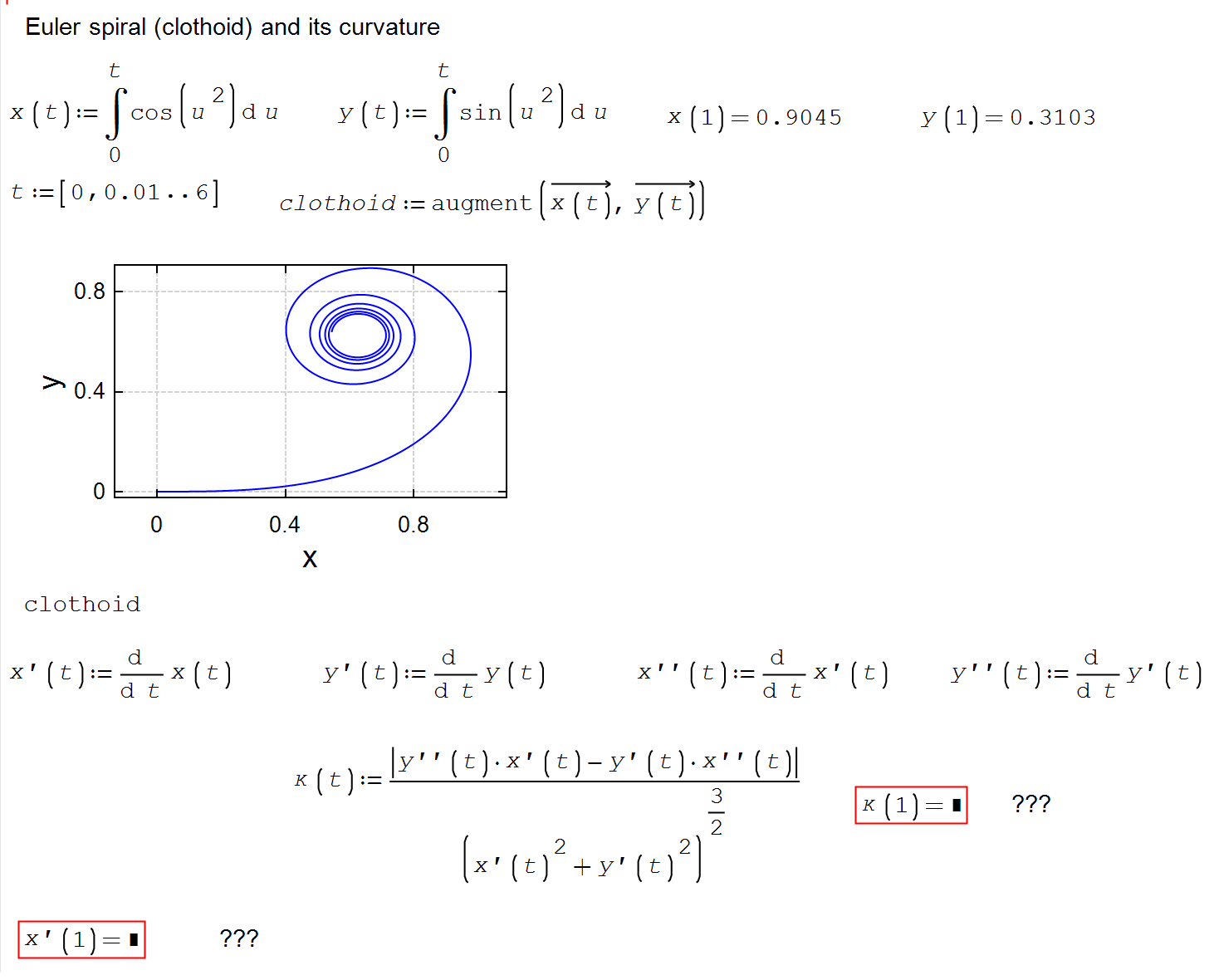

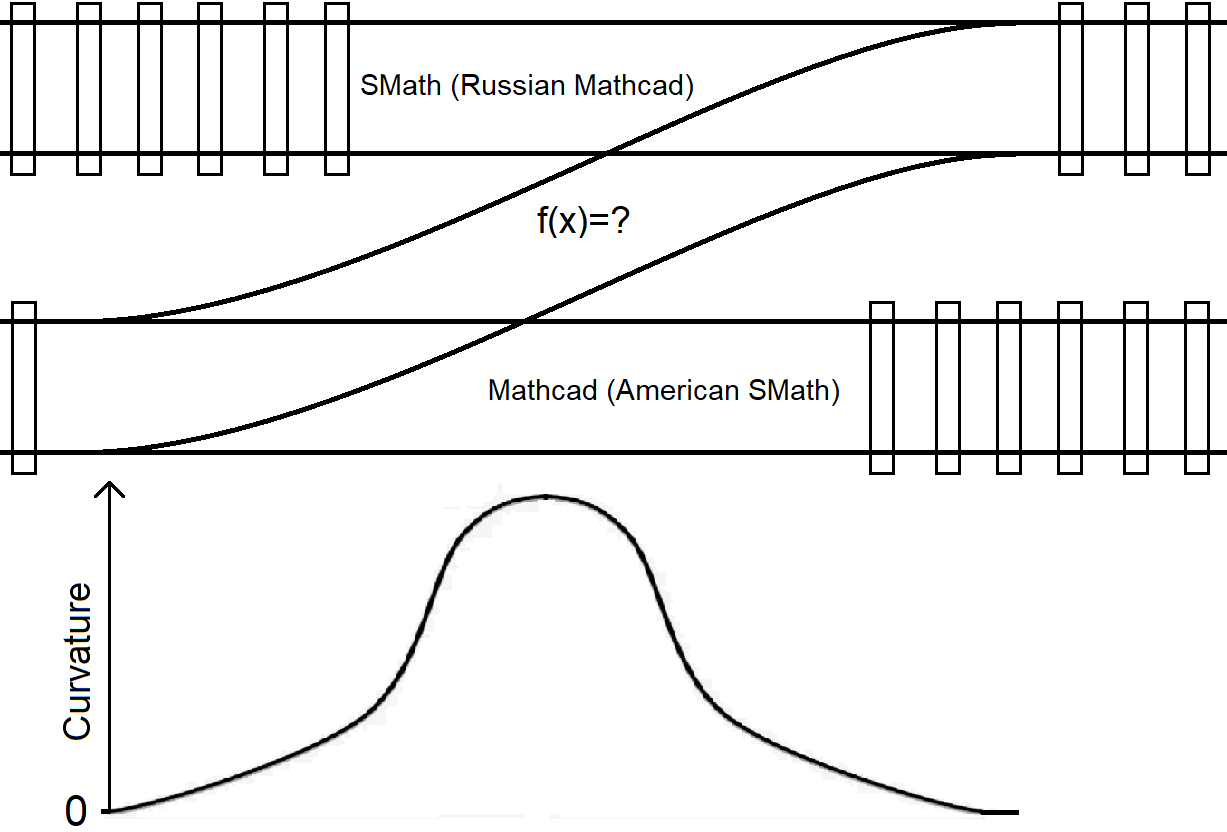

Why I can not to plot the Euler spiral curvature?
1-10-Euler-spiral.sm (175.21 KiB) downloaded 809 time(s).

#2 Posted: 2023/11/14 04:46:11

Martin Kraska

1,308 likes in 2,221 posts.

Group: Moderator

SMath native integration is a purely numerical procedure. Derivatives are symbolic ones. You would need to replace the symbolic derivatives by approximations.

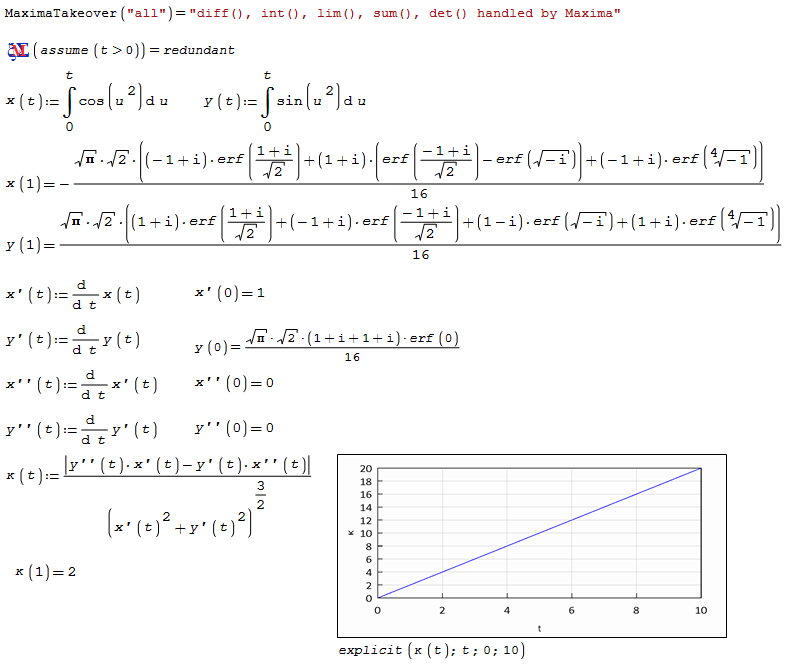

Maxima can handle the derivatives. Funny enough, Maxima can't display the integral values x(t), y(t), neither can it plot them.

But you just asked for the curvature

Euler-spiral_Maxima.sm (28.89 KiB) downloaded 800 time(s).

Martin KraskaPre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

2 users liked this post

Valery Ochkov 2023/11/14 04:50:00, Oscar Campo 2023/11/14 10:13:00

#3 Posted: 2023/11/14 04:53:38

Valery Ochkov

64 likes in 670 posts.

Group: User

Thanks, Martin.
No solution in pure SMath?

#4 Posted: 2023/11/14 05:58:30

Martin Kraska

1,308 likes in 2,221 posts.

Group: Moderator

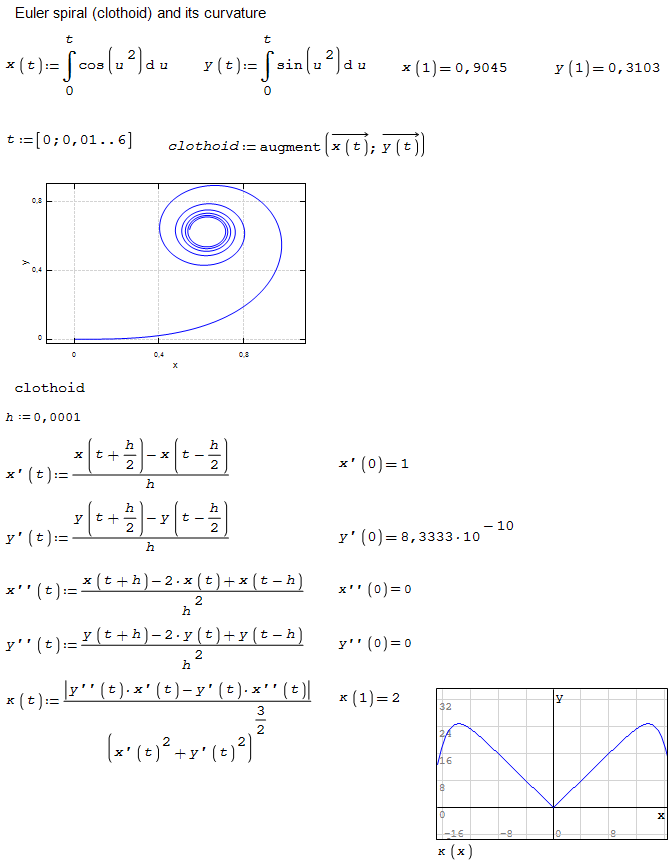

Here is a solution in pure (AKA Maxima-free) SMath.

The derivatives are replaced by difference quotients with a fixed perturbation h. Sooner or later this h is too big for a precise approximation, therefore, the value of the curvature deteriorates for large values of t.
Perhaps the fixed interval integrator also is to be blamed for the loss of precision.

Another M to patent?

Euler-spiral_Kr.sm (15.13 KiB) downloaded 855 time(s).

Martin KraskaPre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

#5 Posted: 2023/11/14 06:11:13

Alvaro

1,078 likes in 1,749 posts.

Group: User

Hi. These are another two options.

1-10-Euler-spiral - option 1.sm (174.84 KiB) downloaded 839 time(s).
1-10-Euler-spiral - option 2.sm (176.58 KiB) downloaded 837 time(s).

Best regards.
Alvaro.

2 users liked this post

Oscar Campo 2023/11/14 10:15:00, Valery Ochkov 2023/11/14 13:43:00

#6 Posted: 2023/11/14 13:45:22

Valery Ochkov

64 likes in 670 posts.

Group: User

1 users liked this post

Oscar Campo 2023/11/14 17:47:00

#7 Posted: 2023/11/14 13:52:31

Valery Ochkov

64 likes in 670 posts.

Group: User

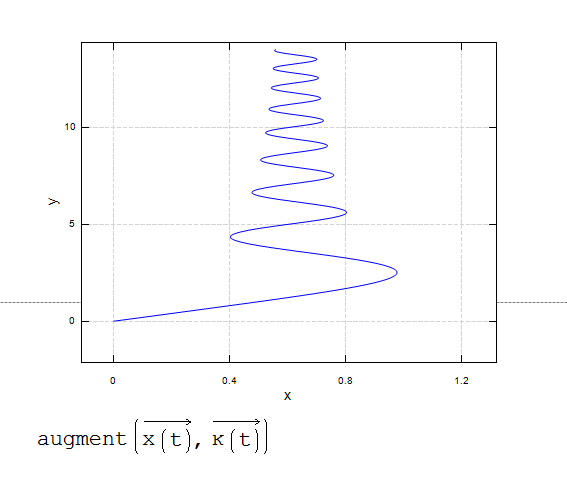

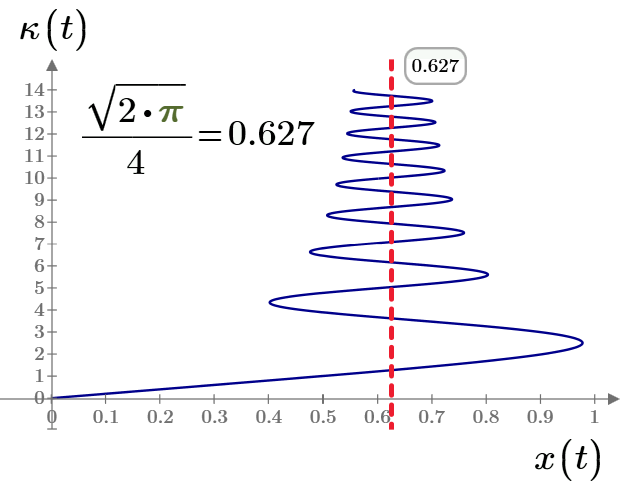

Euler spring

#8 Posted: 2023/11/14 16:44:15

Valery Ochkov

64 likes in 670 posts.

Group: User

https://community.ptc.com/t5/Mathcad/Euler-spiral/m-p/912205/thread-id/209391

#9 Posted: 2023/11/14 18:05:37

Oscar Campo

135 likes in 309 posts.

Group: Moderator

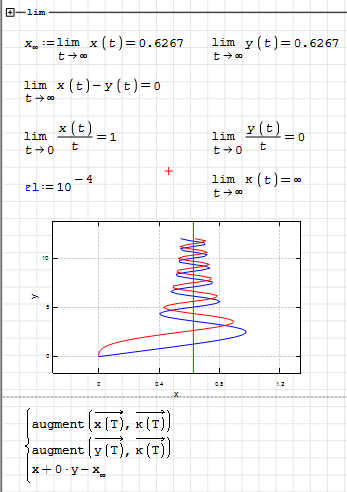

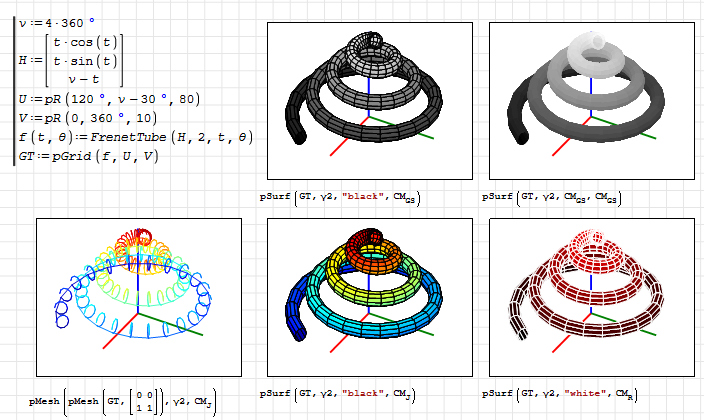

the Euler spring on SMath:

1 users liked this post

Valery Ochkov 2023/11/14 18:18:00

#10 Posted: 2023/11/14 19:39:05

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote
Why I can not to plot the Euler spiral curvature ?

Cornu = Euler = Fresnel = Clothoid ... all same.

Maths Spirals Euler-Cornu.sm (17.51 KiB) downloaded 813 time(s).
Maths Spirals_ANY.sm (26.77 KiB) downloaded 840 time(s).

#11 Posted: 2023/11/14 20:27:47

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote
Cornu = Euler = Fresnel = Clothoid ... all same.

In the document ANY spiral ... set
c:= 0.30634896253
k:= -0.848622607416
r:= 0.25 ... immaterial, just to plot on same canvas.
You will have the Golden spiral considered Fibonacci.
Cheers ... Jean.

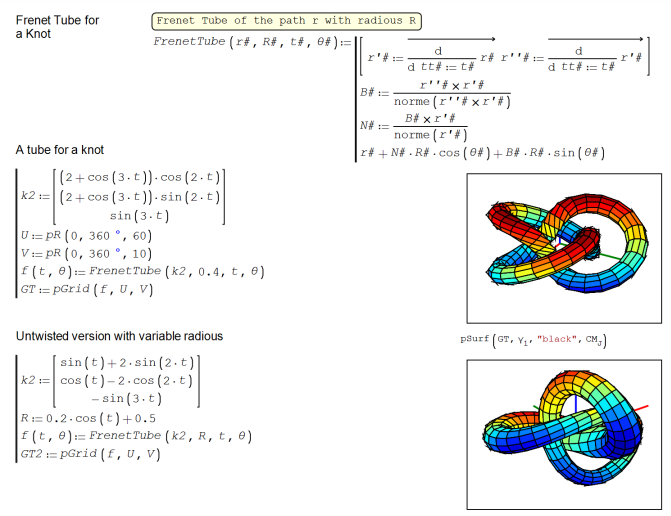

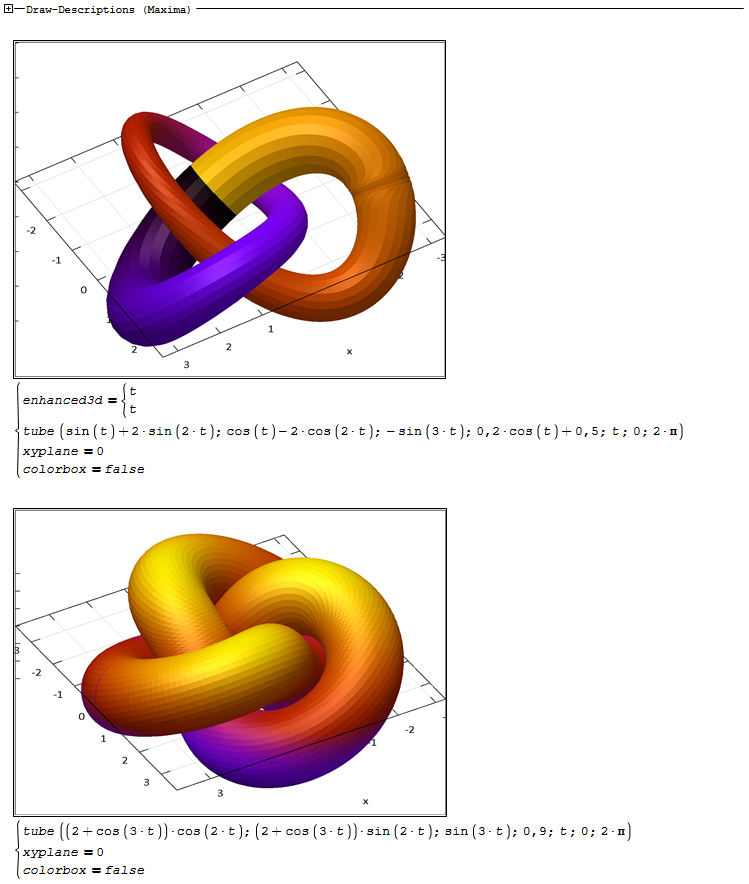

#12 Posted: 2023/11/15 09:00:51

Valery Ochkov

64 likes in 670 posts.

Group: User
