The ZedGraph log did crash my Smath session.
Otherwise Bode data set is 1/1 MCD.

Jean

Project Admittance Copy.sm (47.46 KiB) downloaded 776 time(s).

Wrote

The ZedGraph log did crash my Smath session.

Fixed for ZedGraph in attached. Zedgraph inputs only accept two columns. One must adjust points/line settings within the formatting window settings.
Project Admittance Copy_alyles.sm (90.53 KiB) downloaded 752 time(s).

Wrote

Fixed for ZedGraph in attached.Zedgraph inputs only accept two columns. One must adjust points/line settings within the formatting window settings.

Thanks alyles, just doctored before your attachment.
I noticed ZedGraph does not support spline, unlike ordinary XY.

Project Admittance.sm (87.83 KiB) downloaded 723 time(s).

... [suite]
this Smath document has been doctored/finished for publishing.
Bode gain plot, phase plot ... both log plot X direction.

Jean

Project Admittance Copy.sm (150.21 KiB) downloaded 724 time(s).

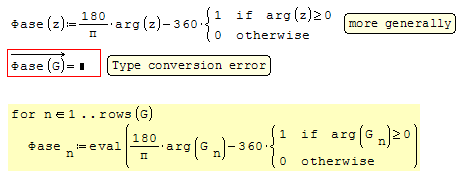

... more general definition of phase:



Project Admittance Copy.sm (155.54 KiB) downloaded 722 time(s).

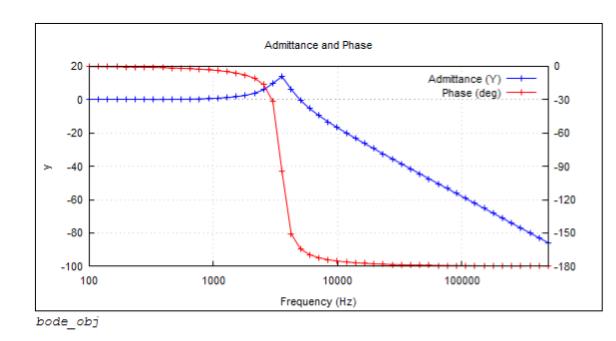

Figured out how to use Maxima's Draw2D(). This also looks nice for a logx plot. Plotted both Admittance and Phase in same graph. I like this as well because properties can be changed directly in SMath sheet.

I played around with XY Plot but was unable to find a way to use log axes.



Project Admittance Copy_Maxima_Draw2D_alyles.sm (183.41 KiB) downloaded 777 time(s).

Nice example!

I did a bit of cleanup, removed the markers and shifted some options to the settings dialog.


Project%20Admittance%20Copy_Maxima_Draw2D_alyles_Kr.sm (97.31 KiB) downloaded 928 time(s).
