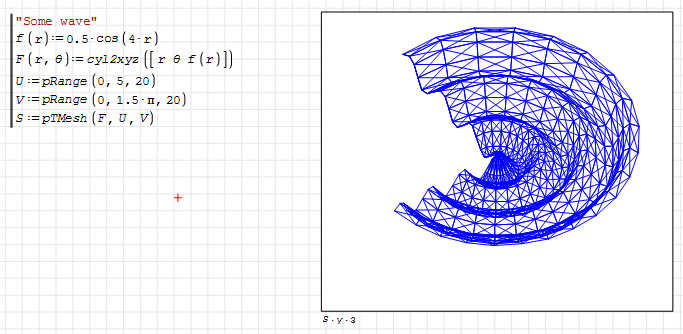

Hi. There are several variants for the triangular meshs. This is one.



pTriMesh.pdf (459.2 KiB) downloaded 434 time(s).

pTriMesh.sm (29.35 KiB) downloaded 840 time(s).

Best regards.
Alvaro.

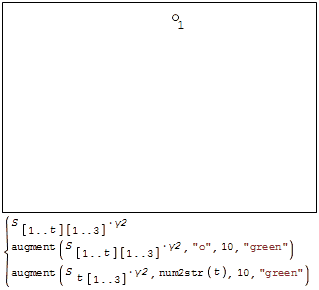

Hi. Here are some notes about how the mesh is constructed. To include the missing vertices, they would have to be inserted at least twice, when drawing the diagonals. It could be done by constructing the mesh as it is, and instead of drawing the entire diagonal, to the center of the squares, but it could be a slow procedure. For another example, please see https://en.smath.com/forum/yaf_postsm74527_Offset-surface-creation.aspx#post74527

pTriMesh work.sm (28.8 KiB) downloaded 847 time(s).






Best regards.
Alvaro.

This other have the intesections as part of the mesh.



pTriMesh_v2.sm (48.39 KiB) downloaded 854 time(s).

Best regards.
Alvaro.

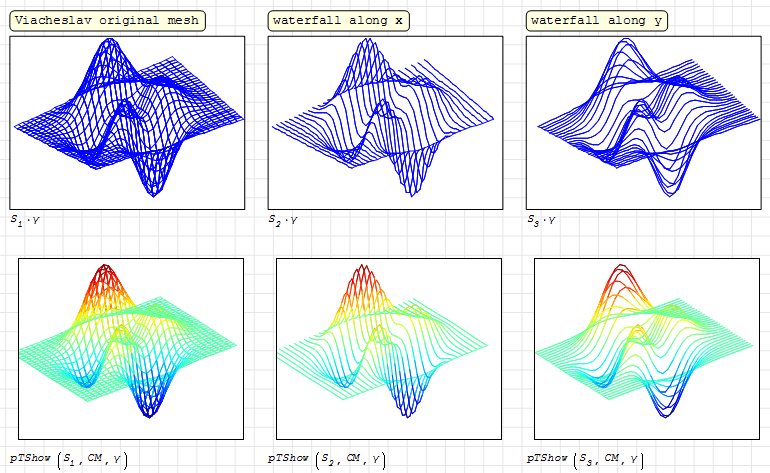

Hi. More general mesh utility, with a variable patern. Also, waterfall plots (matlab page here).



pWMesh.sm (193.8 KiB) downloaded 827 time(s).

pWMesh.pdf (3.2 MiB) downloaded 438 time(s).

Best regards.
Alvaro.
