Hello,

Can we have graphs of data
Linear - Linear, [Yes]
Linear-Log, ?
Log-Log, ?

Thank you,
Basile
#2 Posted: 2017/1/18 04:20:37
NDTM Amarasekera

NDTM Amarasekera

130 likes in 352 posts.

Group: User

Hi,

I also tried semi-log using X-Y Plot, but could not find a way.
However, it is possible using ZedGraph plugin.

ZedGraph 2.jpg
Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka
2 users liked this post
Davide Carpi 2017/1/18 10:33:00, frapuano 2018/2/18 08:47:00
#3 Posted: 2017/1/18 13:05:03
Martin Kraska

Martin Kraska

1,308 likes in 2,221 posts.

Group: Moderator

loglog and semilog plots can be created with Maxima Draw.

Insert> Maxima> Maxima Draw2D

Then you can specify graphics objects. There is partial support for the settings in the context menu. These settings also can be specified in the graphics command list.

An example with log plot can be found here

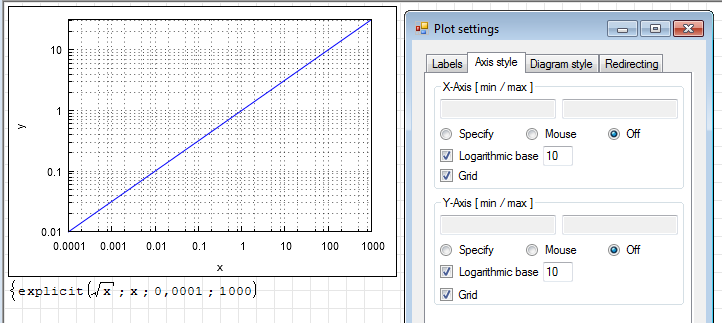

loglog.sm (17.73 KiB) downloaded 914 time(s).
Martin KraskaPre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx
4 users liked this post
sergio 2017/1/18 15:34:00, Radovan Omorjan 2017/1/18 15:36:00, Davide Carpi 2017/1/18 19:51:00, frapuano 2018/2/18 08:46:00
#4 Posted: 2017/1/18 19:37:32
Jean Giraud

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote

Hello,

Can we have graphs of data
Linear - Linear, [Yes]
Linear-Log, ?
Log-Log, ?

Thank you,
Basile



I don't catch "ndtma" plot, it looks to me a "qq plot".
This type of plot is on linear/linear. log scale is a
means to visualise globally large range of values.
You could probably manage your demand inspired from
the "logpts" attached.

Jean

Utilities logpts.sm (42.29 KiB) downloaded 814 time(s).
