logPlot - SMath

#1 Posted: 2019/12/3 10:12:53

Jean Giraud

983 likes in 6,866 posts.

Group: User

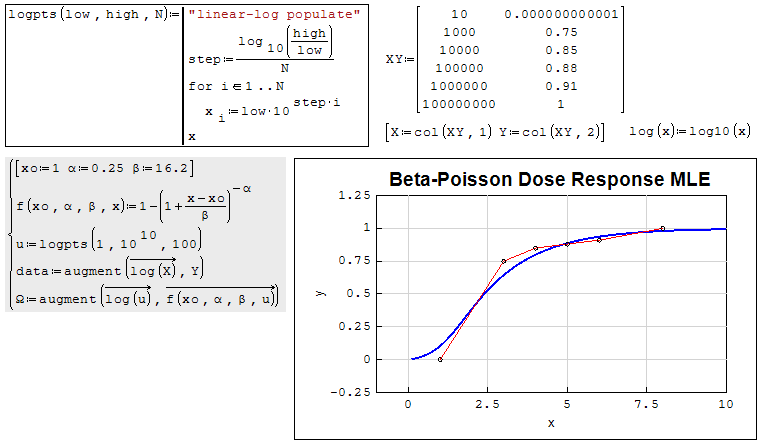

... else than Bode.

Utilities logpts [Beta_Poisson].sm (9.4 KiB) downloaded 914 time(s).

#2 Posted: 2019/12/3 12:21:29

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote
... else than Bode.

... more USER

Utilities logpts [Beta_Poisson].sm (13.52 KiB) downloaded 896 time(s).

#3 Posted: 2019/12/3 15:02:11

Martin Kraska

1,355 likes in 2,271 posts.

Group: Moderator

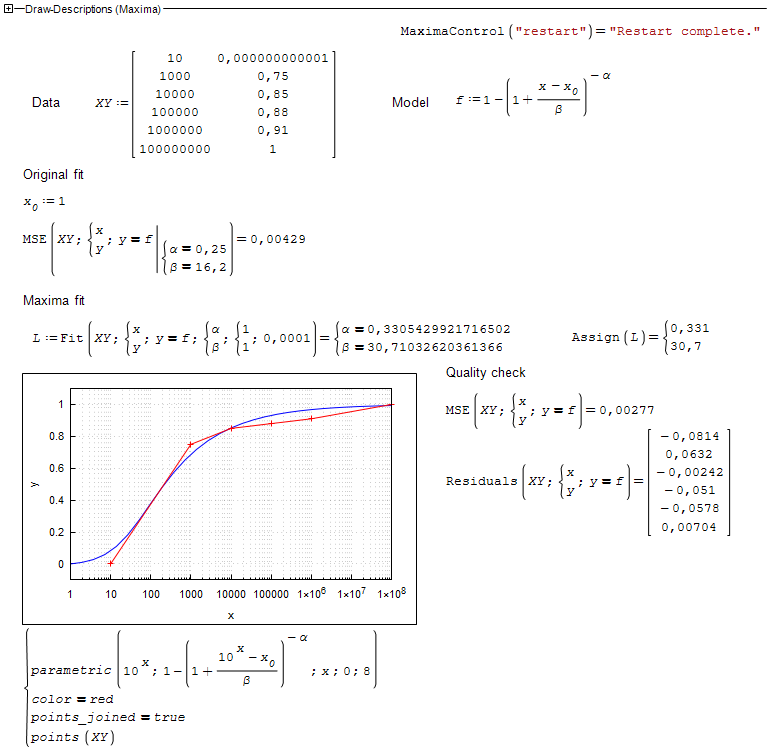

Here is a Maxima version, including the fit procedure. Note the use of parametric() in order to get evenly distributed points in the log plot.

logplot.sm (145.83 KiB) downloaded 1159 time(s).

Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9

2 users liked this post

frapuano 2019/12/3 16:52:00, NDTM Amarasekera 2019/12/4 01:06:00

#4 Posted: 2019/12/3 22:19:59

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote
Here is a Maxima version, including the fit procedure. Note the use of parametric() in order to get evenly distributed points in the log plot.

Thanks Martin.
1. added the source experiment notes
2. added Weibull MLE example.
Jean

Utilities logpts [Beta_Poisson].sm (353.86 KiB) downloaded 1025 time(s).
