Function from plot

#1 Posted: 2023/6/6 08:19:33

Valery Ochkov

64 likes in 670 posts.

Group: User

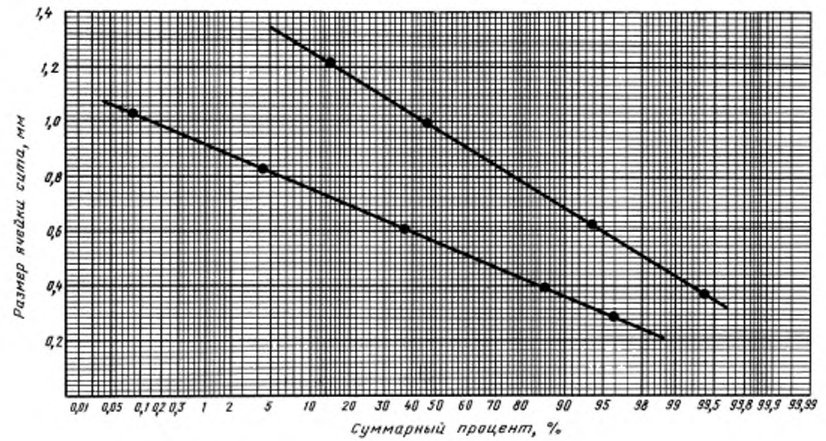

How can I get a function from this plot?

#2 Posted: 2023/6/6 08:59:59

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote
How can I get a function from this plot ?

1. Probably from the expensive digitizer suggested by Richard [Mathsoft Collaboratory]
2. Piecewise from Tracer.
3. Try Mathsoft digitizer.
4. Smath difficult
At this point from the collected data set, fit a model function.
Cheers ... Jean.

1 users liked this post

Valery Ochkov 2023/6/6 10:24:00

#3 Posted: 2023/6/6 10:05:20

Brian Runagle

13 likes in 27 posts.

Group: User

Does this help?

Graphing.pdf (164.86 KiB) downloaded 749 time(s).

Brian

1 users liked this post

Valery Ochkov 2023/6/6 10:24:00

#4 Posted: 2023/6/6 10:15:02

⚜ Kenny Lemens, P.E. ᵂᴵ

85 likes in 177 posts.

Group: User

Greetings,

Wrote
How can I get a function from this plot? 🖼

That is a straight line on a semi-log graph; you can reference this handout: https://inside.mines.edu/~epoeter/_GW/LAB/EquationsOfStraightLinesOnDifferentTypesGraphPaper.pdf

Per this handout, your equation should be

y = b + m*log(x)

where:

m = difference in y over one log cycle of x
b = y value corresponding to x=1

May this be of Good Help;
⚜ Kenny Lemens, P.E. ᵂᴵ

"No matter where you go, there you are." -Buckaroo BanzaiHotkeys: https://en.smath.com/forum/resource.ashx?a=45771&b=2

1 users liked this post

Valery Ochkov 2023/6/6 10:24:00

#5 Posted: 2023/6/6 12:44:34

Alvaro

1,078 likes in 1,749 posts.

Group: User

Wrote
How can I get a function from this plot?

Hi. You can try this post Approximation of a functional curve in a digital image or this other one: Embedding images into a plot

Best regards.
Alvaro.

2 users liked this post

Вячеслав Мезенцев 2023/6/6 14:16:00, Valery Ochkov 2023/6/6 13:45:00

#6 Posted: 2023/6/6 14:19:52

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote
How can I get a function from this plot ?

Hello Valery,
some Smath digitizing utilities
Cheers, Jean.

Digitize Tracer 15.sm (28.83 KiB) downloaded 753 time(s).
Digitize OVNI Copy.sm (69.15 KiB) downloaded 767 time(s).
Digitize Contour Isocurve Himmelblau Copy.sm (106.67 KiB) downloaded 768 time(s).
Digitize Curve.sm (295.86 KiB) downloaded 759 time(s).
Digitize Contour.sm (829.05 KiB) downloaded 772 time(s).
Digitize Clean_Strip_Smooth.sm (1.76 MiB) downloaded 743 time(s).

#7 Posted: 2023/6/6 15:29:30

Jean Giraud

983 likes in 6,866 posts.

Group: User

... this Himmelblau has resident Gray matrix.

Digitize Contour Isocurve Himmelblau Copy.sm (107.19 KiB) downloaded 755 time(s).

1 users liked this post

Valery Ochkov 2023/6/7 01:02:00

#8 Posted: 2023/6/6 17:11:16

Alvaro

1,078 likes in 1,749 posts.

Group: User

Hi. Hope this helps.

Modeling a functional curve in a digital image.pdf (860.39 KiB) downloaded 443 time(s).
Modeling a functional curve in a digital image.sm (1 MiB) downloaded 791 time(s).

Best regards.
Alvaro.

3 users liked this post

Valery Ochkov 2023/6/7 01:02:00, sergio 2023/6/7 06:34:00, darlbeck 2023/6/7 14:59:00
