Hello everyone.

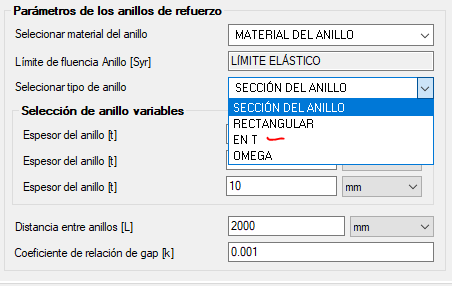

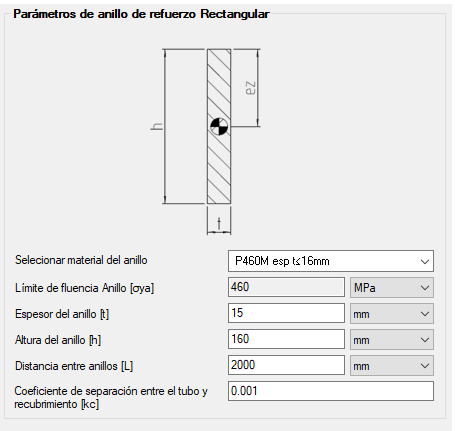

In SMath, is it possible to show variables and an image based on a selection made from a ComboBoxList in the graphical interface? For example, if I select T-type rings, it should only display the T-type image and the input variables related to T-type. Or if I select Omega-type, it should show the Omega-type image and the corresponding input variables for Omega.

I appreciate any help you can provide.

As to the image, that is possible. You can use the image region to display an image from a file. Just provide the filename based on the combobox selection. You also could perhaps embed the graphics in the sm file by reading them into a matrix using functions from Mathcad toolbox.

You also could dynamically generate the images using the standard plot region, X-Y plot region or modeller region.

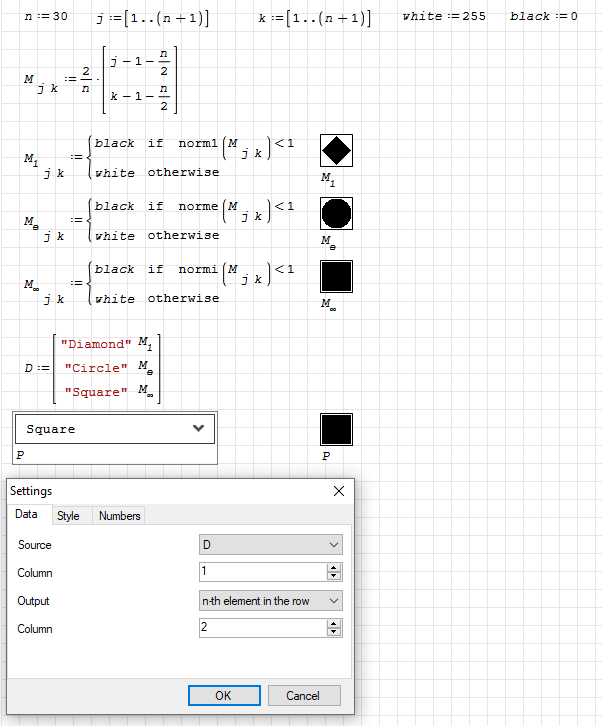

Here is an example where the combobox selects one of three pre-defined images, given as matrices.



imageselect.sm (11.24 KiB) downloaded 957 time(s).
