X-Y Plot Region

#221 Posted: 2018/6/6 10:21:11

Jean Giraud

983 likes in 6,866 posts.

Group: User

Too many things in the same thread.

#222 Posted: 2018/6/6 14:52:43

Вячеслав Мезенцев

1,532 likes in 1,838 posts.

Group: Moderator

Quote
Hi Uni,

Is XY plot still being actively developed?

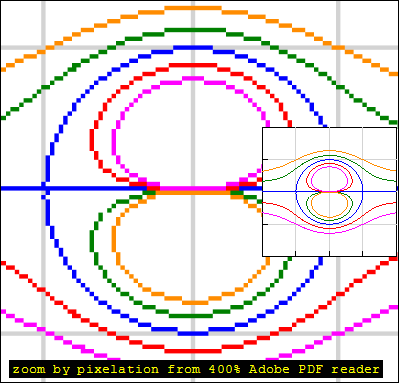

I was hoping you can address the image quality when printed to PDF.

Source code updated, but I can't build the plugin now.

EDIT: A few bugs still present, be patient.

Russia ☭ forever, Viacheslav N. Mezentsev

1 users liked this post

sergio 2018/6/7 04:49:00

#223 Posted: 2018/6/7 15:23:59

Вячеслав Мезенцев

1,532 likes in 1,838 posts.

Group: Moderator

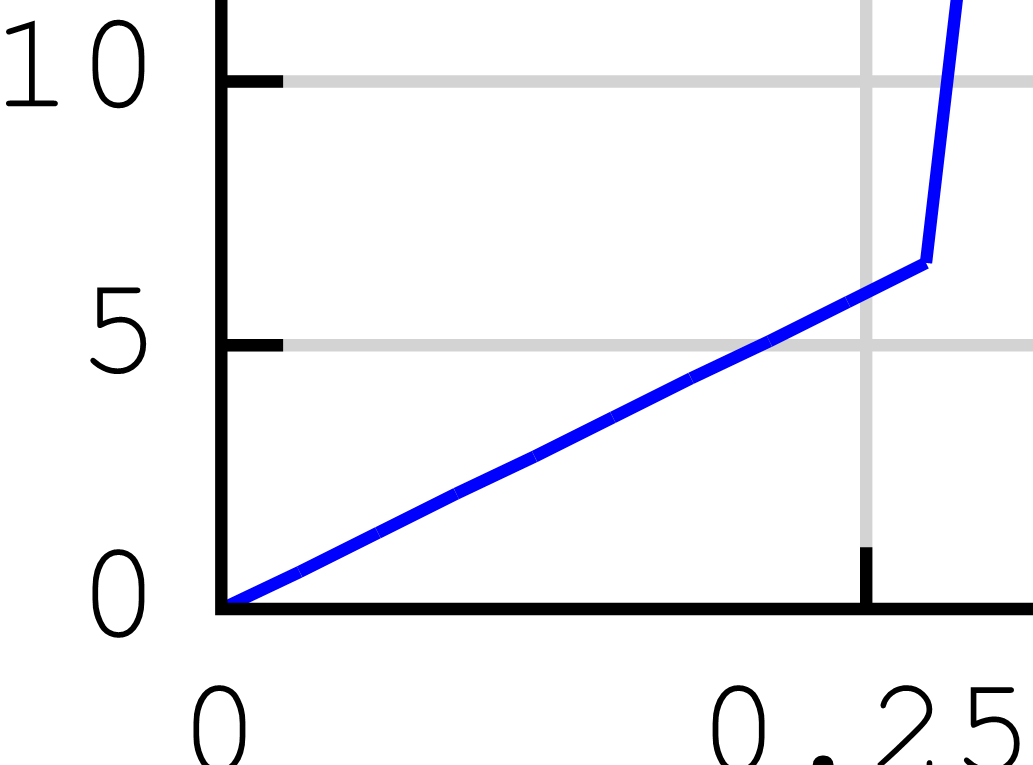

Plugin updated. Now you can check pdf quality.

Russia ☭ forever, Viacheslav N. Mezentsev

6 users liked this post

Alexander O. Melnik 2018/6/7 17:59:00, overlord 2018/6/8 13:28:00, Arie 2018/6/7 16:40:00, Davide Carpi 2018/6/7 20:23:00, sergio 2018/6/7 15:31:00, Oscar Campo 2018/6/7 16:49:00

#224 Posted: 2018/6/7 17:02:22

Alexander O. Melnik

127 likes in 498 posts.

Group: Moderator

Wrote
Plugin updated. Now you can check pdf quality.

Woa this was some ninja-quick plugin patching!!!! thank you UNI (and Davide), all works well :-D

1 users liked this post

Davide Carpi 2018/6/7 20:23:00

#225 Posted: 2018/6/16 15:05:27

Вячеслав Мезенцев

1,532 likes in 1,838 posts.

Group: Moderator

Plugin refactored and updated. Please check your documents.

List1.pdf (117.74 KiB) downloaded 458 time(s).

Russia ☭ forever, Viacheslav N. Mezentsev

5 users liked this post

Davide Carpi 2018/6/18 14:13:00, sergio 2018/6/16 15:17:00, Oscar Campo 2018/6/17 00:37:00, IVR 2018/6/17 10:13:00, frapuano 2018/6/16 15:11:00

#226 Posted: 2018/6/18 14:09:31

Вячеслав Мезенцев

1,532 likes in 1,838 posts.

Group: Moderator

Updated. Error with exceeding the maximum number fixed.

remez.sm (13.43 KiB) downloaded 1111 time(s).
remez.pdf (48.9 KiB) downloaded 684 time(s).

Russia ☭ forever, Viacheslav N. Mezentsev

3 users liked this post

sergio 2018/6/18 14:45:00, Davide Carpi 2018/6/18 14:13:00, frapuano 2018/6/18 14:26:00

#227 Posted: 2018/6/21 05:29:01

Вячеслав Мезенцев

1,532 likes in 1,838 posts.

Group: Moderator

Updated. Definition support restored.

Russia ☭ forever, Viacheslav N. Mezentsev

2 users liked this post

sergio 2018/6/21 06:01:00, NDTM Amarasekera 2018/6/21 07:35:00

#228 Posted: 2018/6/21 06:18:14

NDTM Amarasekera

130 likes in 352 posts.

Group: User

Thanks Uni. It works now.

Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka

#229 Posted: 2018/6/21 09:50:56

NDTM Amarasekera

130 likes in 352 posts.

Group: User

Hi Uni,

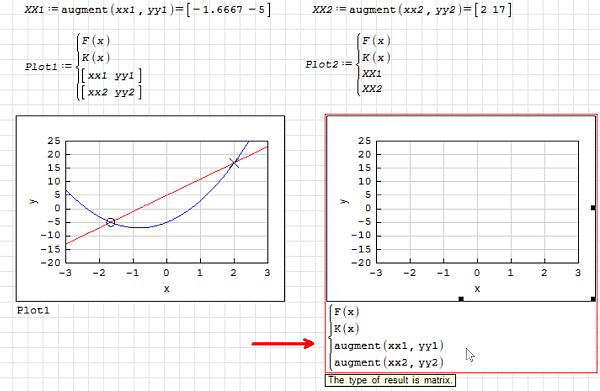

How about this problem (with augment function).

Calculus Ex - by Jean.sm (111.38 KiB) downloaded 771 time(s).

Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka

#230 Posted: 2018/6/21 12:29:48

Вячеслав Мезенцев

1,532 likes in 1,838 posts.

Group: Moderator

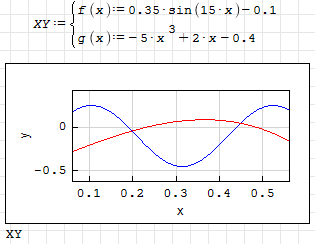

Updated. Try now.

Also shift and control keys available when zooming.

Russia ☭ forever, Viacheslav N. Mezentsev

3 users liked this post

Radovan Omorjan 2018/6/21 15:59:00, NDTM Amarasekera 2018/6/21 13:22:00, IVR 2018/6/23 08:26:00

#231 Posted: 2018/6/21 13:22:12

NDTM Amarasekera

130 likes in 352 posts.

Group: User

It's OK now. Thanks Uni

Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka

#232 Posted: 2018/6/21 23:57:31

marcos

0 likes in 6 posts.

Group: User

Hi,
this plugin is crashing on ubuntu when I click "format" in the context menu.
Any clue what could be the cause?

I have this installed
4.13.0-45-generic #50~16.04.1-Ubuntu SMP Wed May 30 11:18:27 UTC 2018 x86_64 x86_64 x86_64 GNU/Linux

mono-complete/xenial,now 4.2.1.102+dfsg2-7ubuntu4 amd64 [installed]

Thanks!

#233 Posted: 2018/6/22 06:57:22

Вячеслав Мезенцев

1,532 likes in 1,838 posts.

Group: Moderator

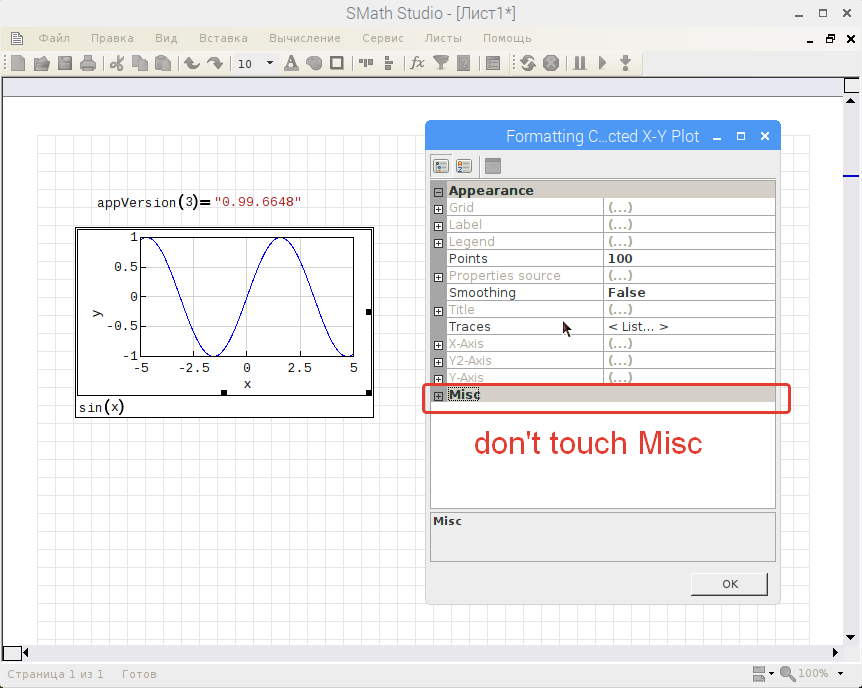

Updated. Tested on RaspberryPi 3.

Russia ☭ forever, Viacheslav N. Mezentsev

1 users liked this post

sergio 2018/6/22 11:07:00

#234 Posted: 2018/6/22 10:30:25

marcos

0 likes in 6 posts.

Group: User

Awesome, thanks!

#235 Posted: 2018/6/24 00:04:25

NDTM Amarasekera

130 likes in 352 posts.

Group: User

Is it possible to plot text at a specified coordinate in X-Y Plot Region or ZedGraph Plot?
(Not in 2D Plot)

Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka

#236 Posted: 2018/6/24 08:08:27

Вячеслав Мезенцев

1,532 likes in 1,838 posts.

Group: Moderator

For now there is no such possibility, but theoretically it can be added.

Russia ☭ forever, Viacheslav N. Mezentsev

#237 Posted: 2018/6/24 10:51:08

NDTM Amarasekera

130 likes in 352 posts.

Group: User

Thank you uni for info.

Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka

#238 Posted: 2018/6/24 15:21:23

frapuano

13 likes in 115 posts.

Group: User

... and if we can overlap a label with a transparent background over the Graph to simulate a similar effect?
Do not remember exactly if a label with a transparent background is possible with the Davide's plugin but I have the feeling that recently a similar feature has been added.
I need to double check if it is feasible.

Best regards

Franco

#239 Posted: 2018/6/25 04:36:10

NDTM Amarasekera

130 likes in 352 posts.

Group: User

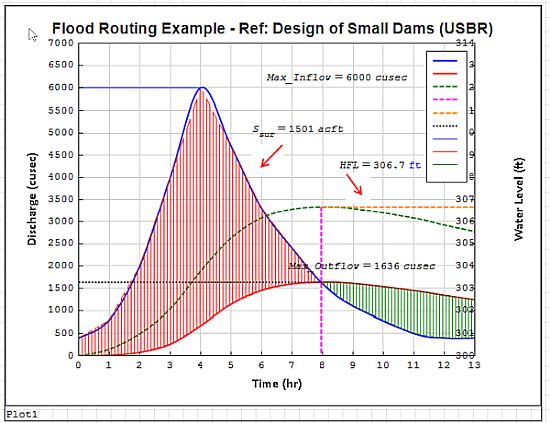

At present I do as follows to display text (static).

Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka

#240 Posted: 2018/6/25 05:54:23

Вячеслав Мезенцев

1,532 likes in 1,838 posts.

Group: Moderator

It is possible to write a special program that would draw text. XYPlot, ZedGraph and NPlot support this feature.

SymbolA.sm (16.73 KiB) downloaded 773 time(s).
SymbolA.pdf (21.19 KiB) downloaded 397 time(s).

Russia ☭ forever, Viacheslav N. Mezentsev

1 users liked this post

frapuano 2018/6/25 13:05:00
