#81 Опубликовано: 11.10.2023 13:06:41
Updated. Experimental build. Be careful with this. You need to update X-Y Plot first.
Thanks for this handy information.

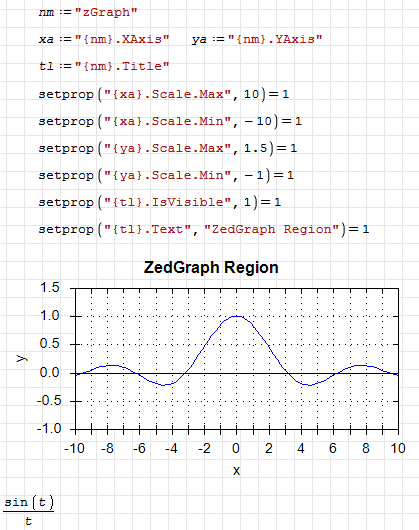

How can it be set properties when I have two or more plots in the same graph? Specifically, I need to set the properties via setprop() function, such as the first plot being plotted as a line (as default) and the second one being plotted with red circles.
Thanks in advance.
1 пользователям понравился этот пост
Andreas Hildebrandt 16.10.2025 09:30:17
#82 Опубликовано: 11.10.2023 14:00:53
How can it be set properties when I have two or more plots in the same graph?
Viacheslav mentioned this 2 years ago.
ZedGraph, XYPlot, Mapple Plot uses setprop().
Apparently, it is not possible at the moment.
Regards
https://en.smath.com/forum/yaf_postsm75628_X-Y-Plot-Region.aspx#post75628
1 пользователям понравился этот пост
Oscar Campo 11.10.2023 14:18:00
#83 Опубликовано: 06.09.2025 03:12:59
Hello~

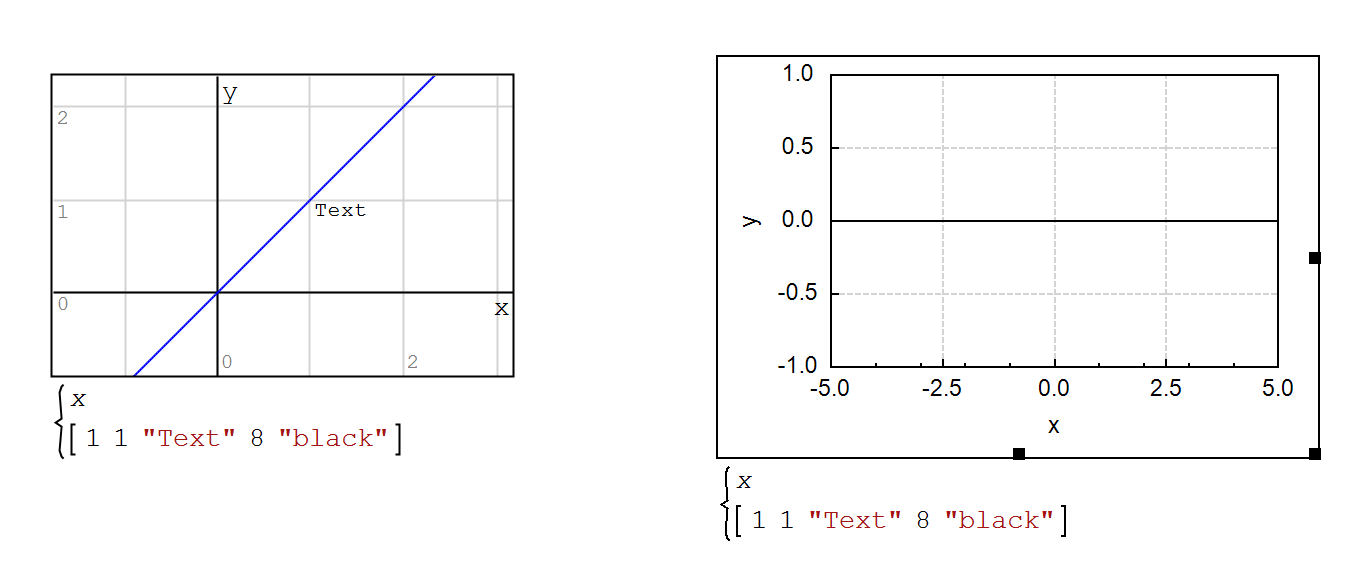

Excuse me, Could anyone teach me how to add text in the graph pane? [1 1 "Text" 8 "black"] did not work in zedgraph. Thank you very much.
Excuse me, Could anyone teach me how to add text in the graph pane? [1 1 "Text" 8 "black"] did not work in zedgraph. Thank you very much.
#84 Опубликовано: 06.09.2025 10:25:43
It doesn't work because it's not implemented due to limited human resources. The component itself allows adding text, but there's no one to add the implementation of this feature.
Russia ☭ forever, Viacheslav N. Mezentsev

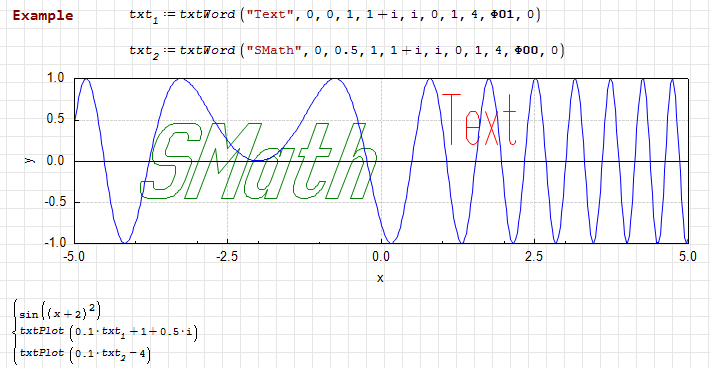

#85 Опубликовано: 06.09.2025 17:46:07
8 пользователям понравился этот пост
Andreas Hildebrandt 16.10.2025 09:30:33, Oscar Campo 07.09.2025 10:09:48, Вячеслав Мезенцев 06.09.2025 23:24:41, liwenbus 07.09.2025 08:28:55, francesco rapuano 07.09.2025 10:26:46, NDTM Amarasekera 07.09.2025 14:06:41, sergio 07.09.2025 16:22:26, ioan92 08.09.2025 10:45:43
#86 Опубликовано: 07.09.2025 08:29:54
It works! Thank you so much!
#87 Опубликовано: 07.03.2026 13:30:54
What's the differencr between X-Y plot and Zedgraph?
#88 Опубликовано: 07.03.2026 13:38:07
This plugin is more complex. It's based on a freely distributed component whose source code has been adapted for the program. It has fewer features than XY Plot; for example, you can't set any component properties from a document.
Once the codebase is migrated to Git, perhaps someone will want to modernize the plugin.
Once the codebase is migrated to Git, perhaps someone will want to modernize the plugin.
Отредактировано 07.03.2026 13:42:25
Russia ☭ forever, Viacheslav N. Mezentsev
1 пользователям понравился этот пост
netsonicyxf 08.03.2026 01:40:58
#89 Опубликовано: 08.03.2026 14:11:34
Zedgraph can display logarithmic axes, X-Y plot can't (unfortunately). Also I like X-Y plot more, because it does not expose that many settings to the user. Also, X-Y plot has animation feature (didn't try with Zedgraph)
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
