Sometimes expressions get too long to stay within the margins. A way to split math expressions into multiple lines would be great for presentation of data in a clear way.

Wrote

Sometimes expressions get too long to stay within the margins.
A way to split math expressions into multiple lines would be great for presentation
of data in a clear way.

Ernesto,

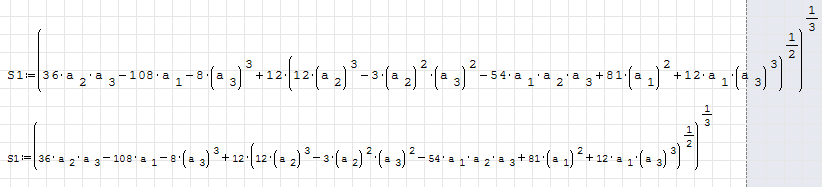

That was a great feature of Mathcad. I do same as described by Ioan [decompose].
Eventually useful but useless in Smath, because the result from symbolic is in
many ways not treatable: very long coefficients, all expressed in rational form.

Jean

I would imagine Andrey could implement some sort of a wrap setting. It is all text after all.

On the other hand, if your equation does not fit in a page, are we trying to do too much in one equation? I did run into this issue myself and I ended up separating things

Wrote

I would imagine Andrey could implement some sort of a wrap setting.
It is all text after all.

On the other hand, if your equation does not fit in a page, are we trying to do too much
in one equation? I did run into this issue myself and I ended up separating things

Easy in Mathcad, but might turn a blody mess.
Much easier to split in components in Smath and
lot more elegant.

Jean

Jean,
You shrank the font. This was not always easy in SMath (newer feature) and some old codgers yell and scream when the font sizes change in reports . As you said about Mathcad ...

Wrote

That was a great feature of Mathcad...
Jean

I'm still holding on to Mathcad 15 for dear life (copied all license keys in triplicate) until I can transfer all or most of those sheets over to SMath.
I really don't want to go through what you went through on your version of Mathcad

Implemented (with some limitations) starting from SMath Studio 0.99.6619. More info here: https://en.smath.info/forum/yaf_postst12530_SMath-Studio-0-99-6619--14-February-2018.aspx

Wrote

Implemented (with some limitations) starting from SMath Studio 0.99.6619.

If something similar to Mathcad 8 Pro <= 11 ... useless.
It was demonstrated by Mathsoft, was never used by Collabs [> 125000 exchanges]
Hyper delicate to use as you had to first set the ONE line equation then split
by place holder/Enter. It could not be used for long symbolic derivatives whereas
symbolic expansion couldn't be collected.
I used it few times [typical Dirac symbolic integration].

The attached dates back two days ago, just refresh this morning.
BTW Andrey, from recollection, I think YOU gave Dragilev Parametric.
I have just made good use of it, delicate to make it profitable.
Wait few days for Contour Utilities to be attached.

Cheers Andrey, Jean

Contour_8 Hypersurface.sm (51 KiB) downloaded 100 time(s).

Wrote

If something similar to Mathcad 8 Pro <= 11 ... useless.

I didn't use this is Mathcad as well, but as I see from the Internet there was some special operator "+" which allowed to make a line break.
If it is a true, then answer is - no, it is done by absolutely different way. Equation uses standard operators. Break is supported for "+", "-" and "*" when it is possible to break equation where user wants.
In my point of view implemented approach is very convenient to use. This is implemented for cases when equation is larger then a paper size, so this is the only elegant way to show large equations.

I'm still working on this feature, so I expect some improvements will be added soon.

Wrote

I didn't use this is Mathcad as well, but as I see from the Internet there was some special operator " " which allowed to make a line break.
If it is a true, then answer is - no, it is done by absolutely different way. Equation uses standard operators. Break is supported for " ", "-" and "*" when it is possible to break equation where user wants.
In my point of view implemented approach is very convenient to use. This is implemented for cases when equation is larger then a paper size, so this is the only elegant way to show large equations.

I'm still working on this feature, so I expect some improvements will be added soon.

Up to Mathcad 11, '*' was not supported.
I can see "split" useful if Smath can download from source a long single line formula.
As well useful to export a long single line equation split for export.
From within Smath ??? There was a Mathcad continued fraction converter to Wallis algorithm.
This one does not work anymore here, my MCD 11 is only a back2back system.

Courage Kamarad !

Maths Split_Collect.sm (139 KiB) downloaded 182 time(s).

WOW ... just WOW!
Multiple realeases back to back AND one of my feature requests . Thank you!

Wrote

Break is supported for "+", "-" and "*" when it is possible to break equation where user wants.
In my point of view implemented approach is very convenient to use. This is implemented for cases when equation is larger then a paper size, so this is the only elegant way to show large equations. I'm still working on this feature, so I expect some improvements will be added soon.

Sounds like this will automatically re-size? From the screenshot in the 6119 build, it looks like it's tied to the math region box (genius). Downloading BETA

Wrote

WOW ... just WOW!

OK, give an example of your WOWWOW
Does not correlate my previous Useless [or almost useless].
please, attach your demo WOWWoW

Don't have to. Many times, the variable names are long to help define "what" it is. Instead of using "R sub one", I can now "print" equations where it's "R sub insfoam" + "R sub drywall"
Makes it easier for the checker to follow. Trust me, I sometimes get lost in your sheets

Hello everybody,
sometimes the definition of a function requires multiple arguments and if you want them to be "self-explaining" (at least to a certain level) you have to use meaningful names for those. All these conditions might bring to a long line before you can type ":" and start with a definition line.
At this point, the space on the paper for statements along the function definition might become a bit tight and the definition itself might be not printable(anything falling out of paper limit will be cutout in printing).

Any chance to have a split at ":=" in order to have the function definition beginning at the left margin of paper?
Something like:

MyVeryLongFunction(OneNiceArgument, ASecondOne, ThisIsThird, Etc, Etc2, AnotherOne):=
|A:= OneNiceArgument + Etc2
|B:= ThisIsThird * AnotherOne
|Calculation:= .....
|ToBeContinued...
|....

Thanks for any help on this subject

Marco

Hello Marco.

Wrote

Any chance to have a split at ":=" in order to have the function definition beginning at the left margin of paper?
Something like:

MyVeryLongFunction(OneNiceArgument, ASecondOne, ThisIsThird, Etc, Etc2, AnotherOne):=
|A:= OneNiceArgument + Etc2
|B:= ThisIsThird * AnotherOne
|Calculation:= .....
|ToBeContinued...
|....

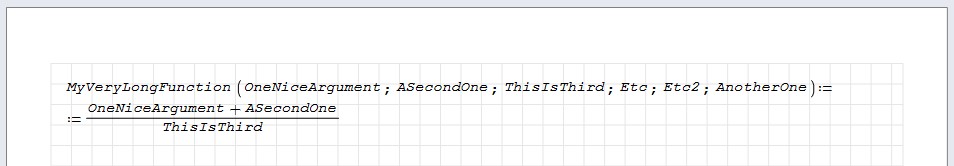

Yes, it is possible. After you have finished composing formula for definition just put the cursor before := and press Ctrl+Enter. This will produce something like


Best regards.

Thanks to everybody for the prompt answers.

Marco

Wrote

Thanks to everybody for the prompt answers.
Marco

Visit this manageable example SS 6179
Take care Marco ... Jean

Marco [Jean].sm (24 KiB) downloaded 135 time(s).

Very interesting Jean, thank you.

Marco
