Snapshot Region - Extends SMath Studio with a region that makes canvas' snapshots - Messages

#21 Posted: 9/25/2013 2:04:55 PM
Martin Kraska

Martin Kraska

1,230 likes in 2,156 posts.

Group: Moderator

Wrote

I can do it, but are you sure? if you want just to resize the region and you go outside the placeholders, the region will resize (just to ask, I agree with the "less things as possible" approach)...



OK, then how about double-click?
If you can resize by mouse action all over the region, why do you need the placeholders? Resizing just by dragging any point inside would be easier than to point at the tiny markers...

BTW, if the image is displayed using an image region (by uni), then the image export is silently blocked for the rest of the session, even if the image region is removed afterwards. This might as well happen if other software has the images open. Thus I would recommend to issue an error message if export fails (if that can be checked).
Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx
#22 Posted: 9/25/2013 3:25:08 PM
Davide Carpi

Davide Carpi

1,418 likes in 2,874 posts.

Group: Moderator

Double click seems a good solution, at least as idea... I don't know if the image region causes issues.... Btw export reports are available in the bottom left corner of smath
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
1 users liked this post
Martin Kraska 9/25/2013 4:06:00 PM
#23 Posted: 9/25/2013 4:05:41 PM
Martin Kraska

Martin Kraska

1,230 likes in 2,156 posts.

Group: Moderator

Wrote

Btw export reports are available in the bottom left corner of smath


Cool.

BTW: The region is not Ctrl-drag-proof.
Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx
#24 Posted: 9/25/2013 4:38:17 PM
Davide Carpi

Davide Carpi

1,418 likes in 2,874 posts.

Group: Moderator

Wrote

BTW: The region is not Ctrl-drag-proof.


What's the issue with ctrl+drag?

If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#25 Posted: 9/25/2013 4:55:40 PM
kilele

kilele

133 likes in 397 posts.

Group: User

what is supposed to do ctrl+drag ? something wrong happens to me with this key combination: after a ctr+drag one more frame is created, see the problem in this video. I'm using the unofficial portable version.
http://screencast-o-matic.com/watch/cIQTrhVm8V
#26 Posted: 9/25/2013 4:56:00 PM
Martin Kraska

Martin Kraska

1,230 likes in 2,156 posts.

Group: Moderator

Wrote

What's the issue with ctrl+drag?

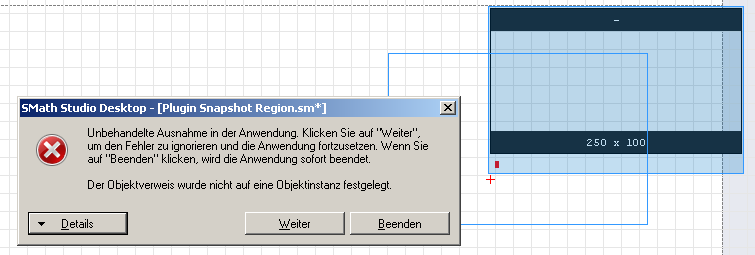

Sorry for being unspecific, see attachment. To relieve you have to press continue and then ESC to drop the copy operation.
Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx
#27 Posted: 9/25/2013 5:47:45 PM
Davide Carpi

Davide Carpi

1,418 likes in 2,874 posts.

Group: Moderator

Wrote

done see the post above

mhhh... Isn't the same behavior of other regions?

Wrote

Sorry for being unspecific, see attachment. To relieve you have to press continue and then ESC to drop the copy operation.

Found & Fixed, thank you
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
1 users liked this post
Martin Kraska 9/25/2013 6:29:00 PM
#28 Posted: 9/25/2013 6:27:57 PM
Martin Kraska

Martin Kraska

1,230 likes in 2,156 posts.

Group: Moderator

Handbook page for Snapshot region added.

@kilele: your video shows, that you are writing a snapshot doc as well, is that right? If so, how about a bit of co-ordination? I really do not insist on documenting everything myself and would be happy to integrate contributions to the activebook (can be done via SVN). There is plenty of white spots, a lot of work yet to do...
Plugin Snapshot Region.sm (45 KiB) downloaded 140 time(s).
Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx
#29 Posted: 9/25/2013 6:30:42 PM
Davide Carpi

Davide Carpi

1,418 likes in 2,874 posts.

Group: Moderator

Wrote

Handbook page for Snapshot region added.

@kilele: your video shows, that you are writing a snapshot doc as well, is that right? If so, how about a bit of co-ordination? I really do not insist on documenting everything myself and would be happy to integrate contributions to the activebook (can be done via SVN). There is plenty of white spots, a lot of work yet to do...



Is my plugin reference's sheet, I'll send you a link
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#30 Posted: 9/25/2013 6:44:18 PM
kilele

kilele

133 likes in 397 posts.

Group: User

sorry for the confusion, didn't know what ctr+drag was for, now I can see that the region can be dragged around without problems
1 users liked this post
Davide Carpi 9/26/2013 2:30:00 AM
#31 Posted: 10/12/2013 5:17:28 PM
Martin Kraska

Martin Kraska

1,230 likes in 2,156 posts.

Group: Moderator

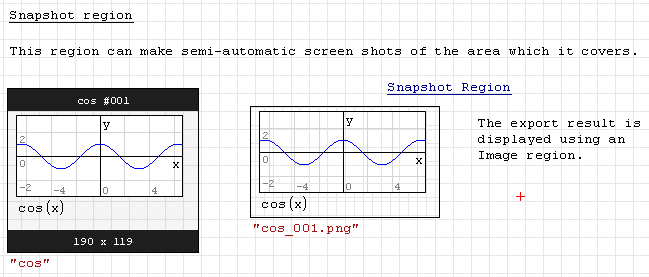

I'd propose to write the export files with white background instead of translucent. Perhaps this might be an option. The problem shown in the attached image could also be solved by the image region providing white background. But that would not be entirely equivalent, because the Image region is currently unaware of the image dimensions.
Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx
#32 Posted: 10/12/2013 10:19:48 PM
Davide Carpi

Davide Carpi

1,418 likes in 2,874 posts.

Group: Moderator

Wrote

I'd propose to write the export files with white background instead of translucent. Perhaps this might be an option. The problem shown in the attached image could also be solved by the image region providing white background. But that would not be entirely equivalent, because the Image region is currently unaware of the image dimensions.



That's an image region feature, the exported PNGs are not transparents (try yourself opening the images with an image editor)
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#33 Posted: 10/13/2013 1:04:34 AM
Вячеслав Мезенцев

Вячеслав Мезенцев

1,404 likes in 1,709 posts.

Group: Moderator

Yes, Davide is right, I make image transparent, removing the white background.
Russia ☭ forever, Viacheslav N. Mezentsev
1 users liked this post
Davide Carpi 10/13/2013 8:13:00 AM
#34 Posted: 10/15/2013 5:22:10 AM
Davide Carpi

Davide Carpi

1,418 likes in 2,874 posts.

Group: Moderator

UPDATED

- version 1.0.* (password is no more required);
- Double-click over the region to make the region compact/fullsize;
- Added Spanish translations (thanks to kilele);
- Fixed Italian and German translations (thanks to Martin Kraska);
- Fixed crashes due to wrong handling of exceptions' propagations;
- minor changes.
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#35 Posted: 12/19/2013 4:44:12 PM
Davide Carpi

Davide Carpi

1,418 likes in 2,874 posts.

Group: Moderator

UPDATED

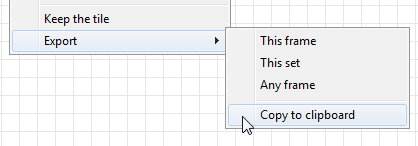

- Added "copy to clipboard"


edit: documentation & translation sheet updated (look at the first post)
2013-12-20 01_35_11-SMath Studio Desktop - [Piastra di base [EC3].sm_].png
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
1 users liked this post
Andrey Ivashov 12/19/2013 6:44:00 PM
#36 Posted: 1/24/2014 5:05:01 AM
Martin Kraska

Martin Kraska

1,230 likes in 2,156 posts.

Group: Moderator

If a file with Snapshot regions is opened and then saved at a different location, the default snapshot save path still points to the location of the original file. I propose to change this such that default save location is always the directory where the SMath sheet resides.
Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx
#37 Posted: 1/24/2014 7:49:00 AM
Davide Carpi

Davide Carpi

1,418 likes in 2,874 posts.

Group: Moderator

I've updated the plugin. The file needs to be refreshed after the save in the new location to have the path updated (bug alredy reported)
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#38 Posted: 2/3/2014 2:03:03 PM
Davide Carpi

Davide Carpi

1,418 likes in 2,874 posts.

Group: Moderator

UPDATED

- SMath Studio 0.96.5146 required
- German translation updated with latest strings


best regards,

Davide
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#39 Posted: 2/12/2014 7:18:06 PM
Davide Carpi

Davide Carpi

1,418 likes in 2,874 posts.

Group: Moderator

UPDATED

- Paste as SMath string temporary disabled (this let you paste strings on the canvas freely)
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#40 Posted: 3/8/2014 2:48:44 PM
Martin Kraska

Martin Kraska

1,230 likes in 2,156 posts.

Group: Moderator

I experience an "insufficient memory" error when exporting "all" snapshots in the attached sheet. It is possible to recover from the error message. Individual export works.
