Maple Tools - Symbolic engine for SMath Studio. - Messages
Archive: MapleWrapper_20130425.zip
P.S. Another way.
with.inc:
restart:with(linalg):with(inttrans):
One example.
with.inc:restart:with(linalg):with(inttrans):
Hi Uni, Thank you but it doesn't work for me. I can see the correct answer in mvr5.txt but Smath showed this error, s is not defined.
Have you used the symbolic evaluation? Right-button mouse click and set the optimization option to "Symbolic"
regards,
w3b5urf3r
P.S. I can't find now how to change the view of the equal sign. Apparently it was removed in newer versions. For symbolic output you need to press [Ctrl] + [.].
P.S. I can't find now how to change the view of the equal sign. Apparently it was removed in newer versions. For symbolic output you need to press [Ctrl] + [.].
The arrow was removed in the 0.91 relase; I think that would be useful to visually distinguish between optimiztions, maybe with a little "S" in the top-right corner or over the equal sign....
Yes, you must use the symbolic evaluation ( -> ) but not numerical ( = ). In my examples used symbolic evaluation, it is not visible because I changed the view of symbol (from -> to =).
P.S. I can't find now how to change the view of the equal sign. Apparently it was removed in newer versions. For symbolic output you need to press [Ctrl] + [.].
Finally it works now Hello,
the maple plugin seems to be partially incompatible with ; and , settings. For me, with , and . the examples work, with ; and , see attached image (generated with plugin version 2012 10 06). Unfortunately I can't remember if I had that problem earlier. Browsing the forum topic I found that there were times that ; and , was the default setting, that seems to have changed.
Switching to , and . is an option in particular cases, but I am writing a handbook in german that entirely demands and assumes ; and , settings.
Best regards, Martin Kraska
Updated. Try again.
Finally the MapleWrapper_20130502 works for me. Thank you for this new version.
Greetings!
Updated. Try again.
Much better than before. Thank you for the great work.

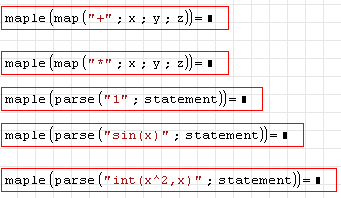

I tried the examples:
parse.sm generates formatting problems, the error message says that "Index and length have to refer to a position in the string"
in MapleWrapper_Examples, all functions involving strings fail with the same error message, everything else is fine.
Updated. Try again.
Much better than before. Thank you for the great work.
I tried the examples:
parse.sm generates formatting problems, the error message says that "Index and length have to refer to a position in the string"
in MapleWrapper_Examples, all functions involving strings fail with the same error message, everything else is fine.
Yes, this problem is present. I haven't found a good way to make the parsing more flexible. Working on it.
I got an error like in this example below:
Regards,
Janusz
[Moderator]: Moved.
That's strange. I can not reproduce this. It works for me.
Regards,
Radovan
This error does not happen with . as dec separator and , as arg separator. Thus we have still localization problems with maplewrapper.
I confirm that. The error message is "Error, (in smath_diff) wrong number (or type) of parameters in function diff|ans"
This error does not happen with . as dec separator and , as arg separator. Thus we have still localization problems with maplewrapper.
It seems you are right Martin. One more confirmation that this problem still persist, in spite of unis' efforts.
Regards,
Radovan

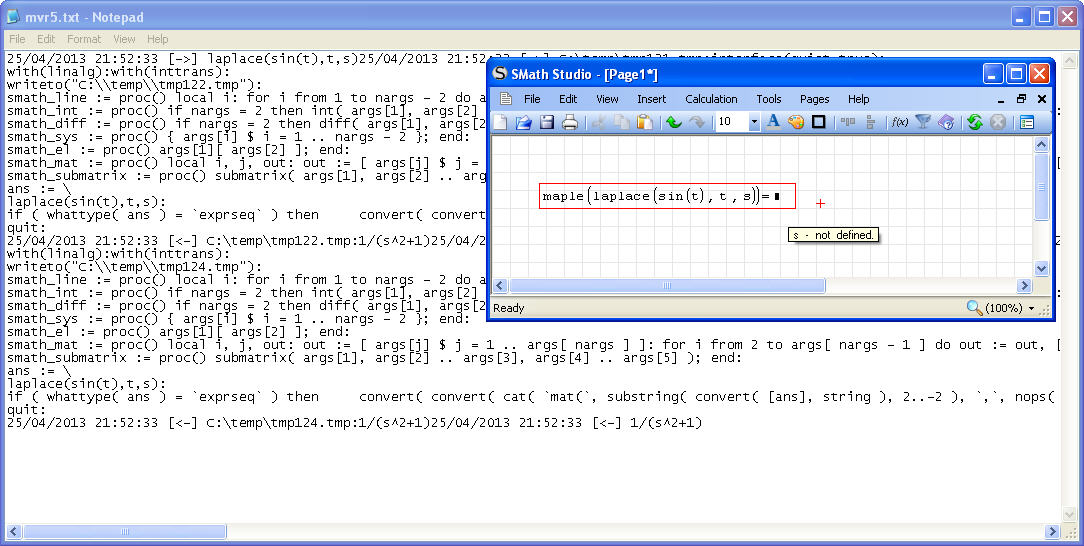

I specially do output to a log file. It is desirable in all such cases to show the contents of the file \plugins\mvr5\mvr5.txt.
Here you are.
maple(diff(diff(f(x);el(x;1));el(x;2))) - copy and paste to SMath Studio[->] smath_diff(smath_diff(smath_el(x,1)^3+smath_el(x,2)^2,smath_el(x,2)),smath_el(x,1))

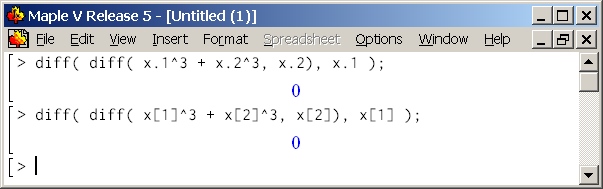

P.S. I didn't know that Maple understands this entry. I didn't plan to support this form of the equation.
I confirm that. The error message is "Error, (in smath_diff) wrong number (or type) of parameters in function diff|ans"
This error does not happen with . as dec separator and , as arg separator. Thus we have still localization problems with maplewrapper.
Martin, thank you for your explanations concerning this error, I made the change in settings SMath Studio - according to your advices, and all is already well.
Regards,
Janusz
-
