Plugin updated.

Changes:

- fixed: when cloning a component and changing its name, the function setprop() doesn't work.

Wrote

Plugin updated.

Is there a fucntion of autoscale? To find the plot as soon as it's created

There is no automatic detection of curve boundaries.

Wrote

There is no automatic detection of curve boundaries.

Are you planning to add this? Or is it impossible?

It's possible, but I don't know what to do in special cases. For example, if I want to draw a circle in an implicit way, how can I determine its boundaries.

Wrote

It's possible, but I don't know what to do in special cases. For example, if I want to draw a circle in an implicit way, how can I determine its boundaries.

Hi. Although setprop provides the ability to adjust the limits, it disables formatting the graph with the menus. An intermediate and easily accessible solution would perhaps be to be able to define the window where you want to view the functions to be graphed with something like what is shown in the figure.



Notice also that there is no automatic selection for the range on the x-axis for functions of a variable, that is, it always has to be selected by the user, and on the y-axis it can become something quite arbitrary, as it can be in graph of y=1/x.

Best regards.
Alvaro.

Wrote

It's possible, but I don't know what to do in special cases. For example, if I want to draw a circle in an implicit way, how can I determine its boundaries.

You can do this experimentally and disabled by default. If a graph is being built, its extreme points are determined (top-bottom, right-left), 5-10% of the coordinate values are added (if the left or bottom point is 0, then the axis starts from zero) and the graph is scaled.
You can add horizontal, vertical, or both axis scaling

How to autoscale in these and similar cases? It makes sense to change sources if the architecture of the changes has a general form, and not a lot of particulars. The developer must consider multiple use cases, as users will then ask why it only works in one or a few cases.

Wrote

How to autoscale in these and similar cases? It makes sense to change sources if the architecture of the changes has a general form, and not a lot of particulars. The developer must consider multiple use cases, as users will then ask why it only works in one or a few cases.

In this case, you can write "the boundaries of the graph could not be determined". That's it!)

Any way to plot a string at a specified angle?

Wrote

Any way to plot a string at a specified angle?

Hi. You can try this. Just move the "Fonts" area from the end to the beginning.

Best regards.
Alvaro.

A simplified version of setting properties will be available when the release manager is fixed.

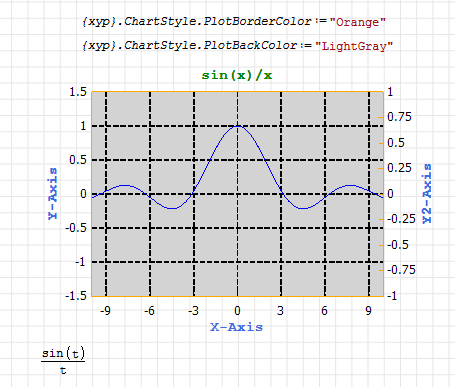

What's wrong with this method? You can always use transparency. Color format: #ARGB.

Thanks for your answer.

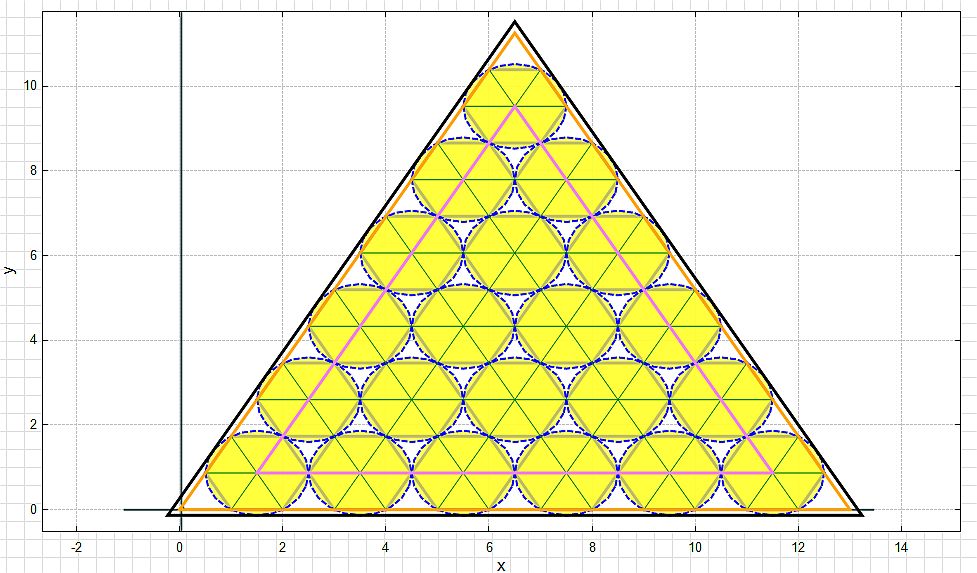

Here is my application's result:

Plugin updated. Ctrl+Shift+K for special symbols ( '.','{','}' ).

Changes:

- added a simplified version of setting properties;
- added support for nesting for easier property setting;

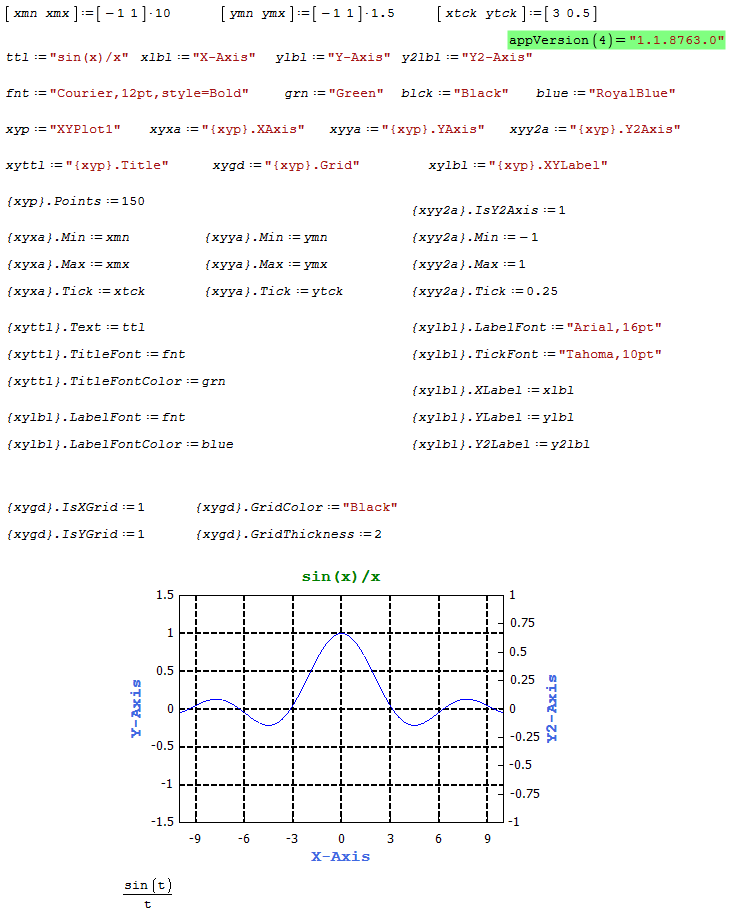

- simplified nested example added.

Wrote

Plugin updated. Ctrl+Shift+K for special symbols ( '.','{','}' ).

thanks uni , it's so convenient to set properties for figures now ,

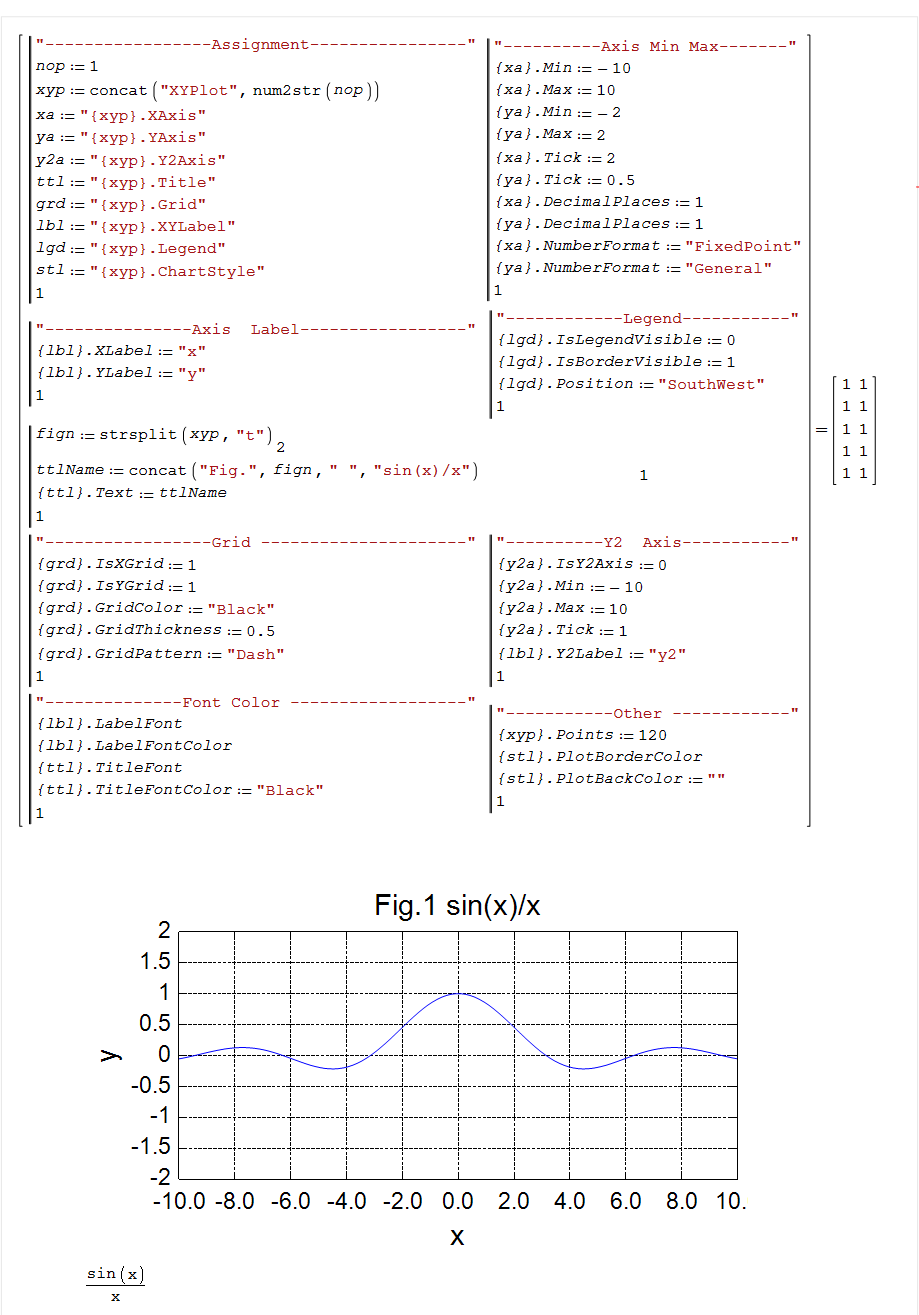

i wil attach my usage for late-comers to reference .
i decide to make it be a snippet , whenever there is a xyplot i'll insert this snippet


my sm file is at: simplifed_setprop.sm (13.06 KiB) downloaded 966 time(s).

From now the old ways of managing the plot settings from the document will be considered obsolete. In the future, I will disable and remove them.
I might remove the curly braces on the left. They're not really necessary. Right now, the source code from the setprop() function is used.

I'd propose to add an option to send the current settings of a plot to the clipboard as math regions. Then the user can paste this to the sheet and delete/modify as needed.

As an experiment, I may add this feature.
